1-1/8 Steel wheel, Roller Assembly

Part Number: 13100
Price: $15.00
1-1/8 inch steel ball bearing roller
Adjustable steel housing assembly
Used by Merzon and other glass door manufacturers

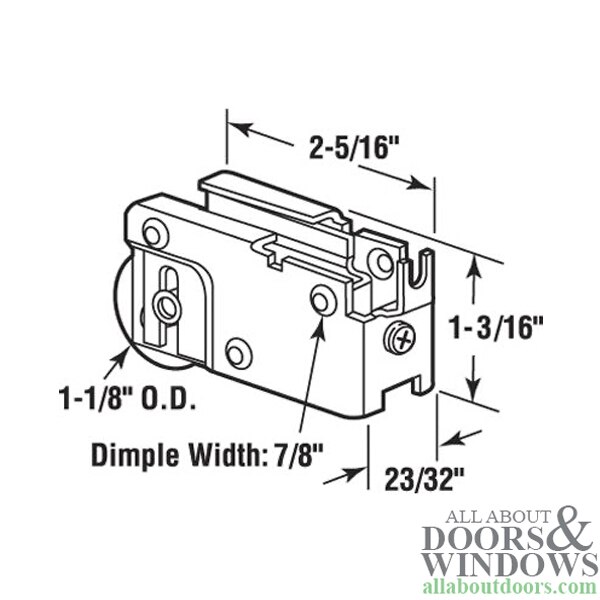

Housing dimensions: thickness,23/32 inch; length,2-5/16 inch; height,1-3/16 inch; overall thickness, 7/8 inch.

Diameter: 1-1/8-inch
Housing Tab Style: C-Tab
Housing Width: 23/32-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 23/32-inch
Sold each, priced each

Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door

This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1527
SlideCo: 13563
