1-1/8 Steel Wheel, Roller Assembly
Sold each, priced each
1-1/8 inch steel ball bearing roller
Adjustable steel housing assembly
Designed for Capitol door

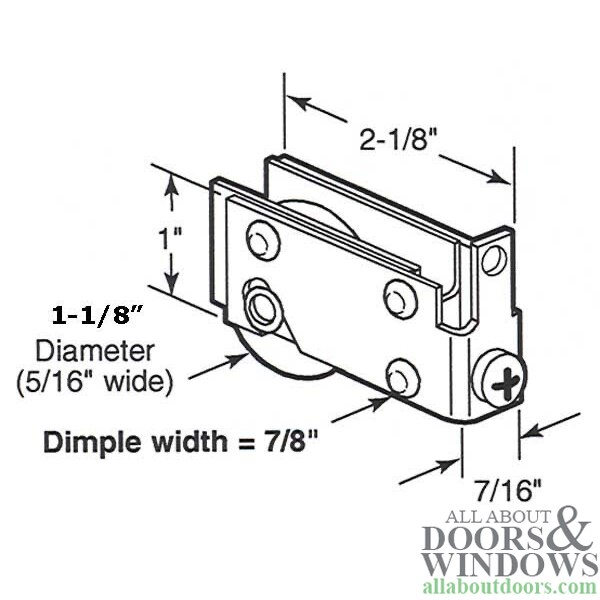

Housing dimensions: thickness, 19/32 inch; length, 2-1/8 inch; height, 1 inch.

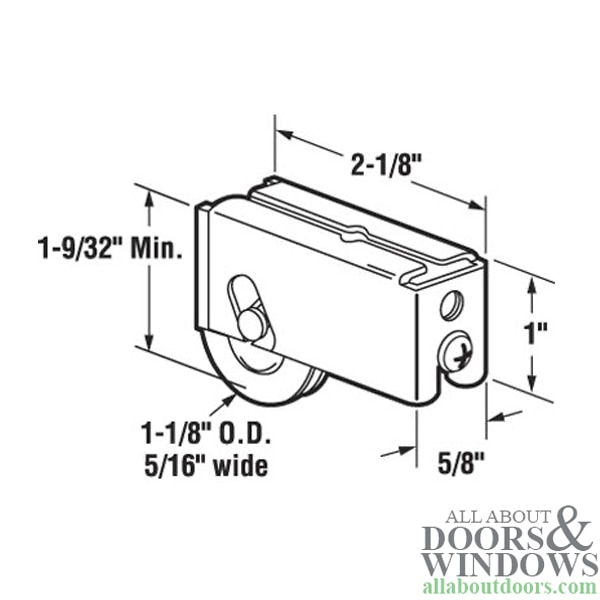

NOTE: The rivets stick out past the housing and is thicker at the wheel than the original. Possible convert by using the 13180 Housing and changing the wheel from The 13103 and then using a modified Axle Pin.
Diameter: 1-1/8-inch
Housing Tab Style: Plain Back
Housing Width: 5/8-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 5/8-inch
Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door
1-1/8 inch steel ball bearing roller
Adjustable steel housing assembly
Designed for Capitol door
Housing dimensions: thickness, 19/32 inch; length, 2-1/8 inch; height, 1 inch.
NOTE: The rivets stick out past the housing and is thicker at the wheel than the original. Possible convert by using the 13180 Housing and changing the wheel from The 13103 and then using a modified Axle Pin.
Diameter: 1-1/8-inch
Housing Tab Style: Plain Back
Housing Width: 5/8-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 5/8-inch
Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1596
Strybuc Industries: 900-16319
SlideCo: 13849
Prime-Line Products: D 1596
Strybuc Industries: 900-16319
SlideCo: 13849
