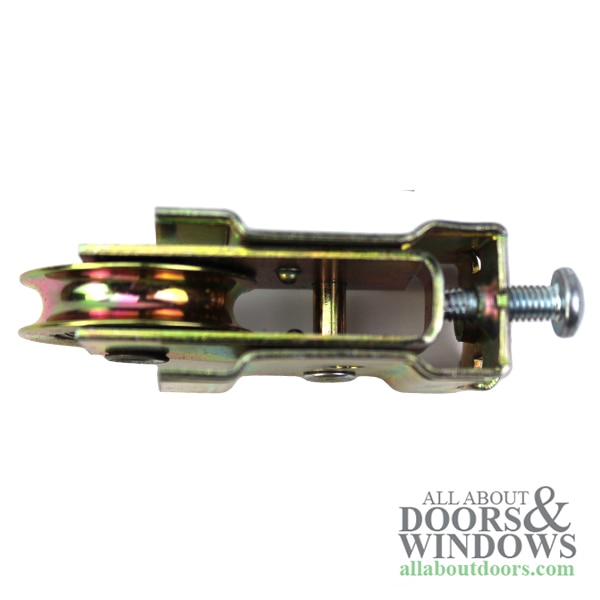

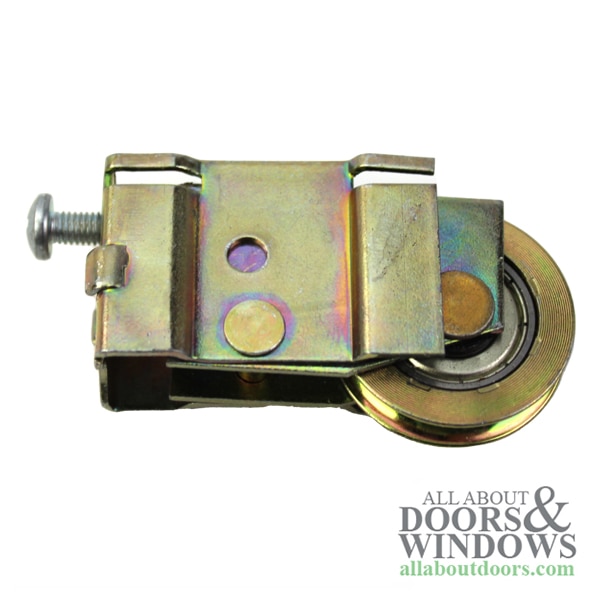

Sliding Door Roller Assembly with Adjustable Steel Plain Back Housing 1.25 Inch Steel Ball Bearing Wheel Diameter

Part Number: 13156
Price: $8.60
1-1/4 inch steel ball bearing roller
Adjustable steel housing assembly
Used by several glass door manufacturers

Sold each, priced each

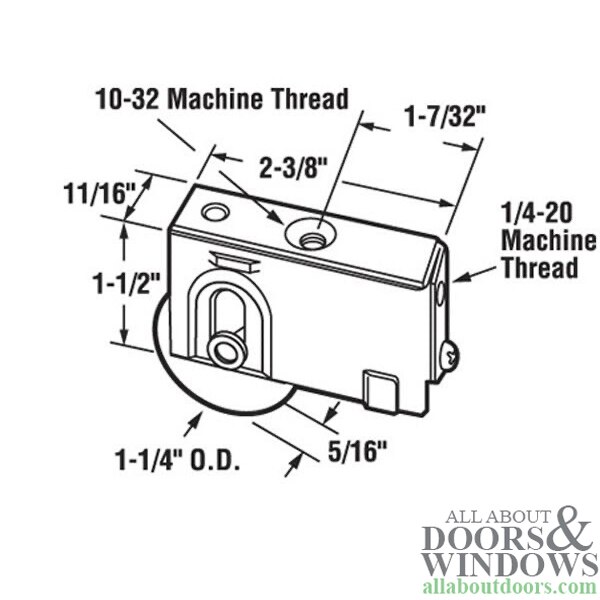

Housing dimensions: thickness, 11/16 inch; length, 2-3/8 inch; height,1-1/2 inch; overall thickness, 13/16 inch.

Diameter: 1-1/4-inch
Housing Tab Style: Plain Back
Housing Width: 11/16-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 11/16-inch

Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door




This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1542
