Winkhaus One Motion Eclipse 30/20T 45 Keyed Cylinder - Choose Color

Part Number: 413020360
Price:$34.67 to $111.25

Cylinder 30/20 45 Collar Key Knob ORB 613
Winkhaus One Motion Eclipse Cylinder 30/20 45mm Full Cylinder,
Thumbturn Knob Keyed, WHNA 30/20

Fits: One Motion Lock, 1-3/4 inch (45mm) thick door

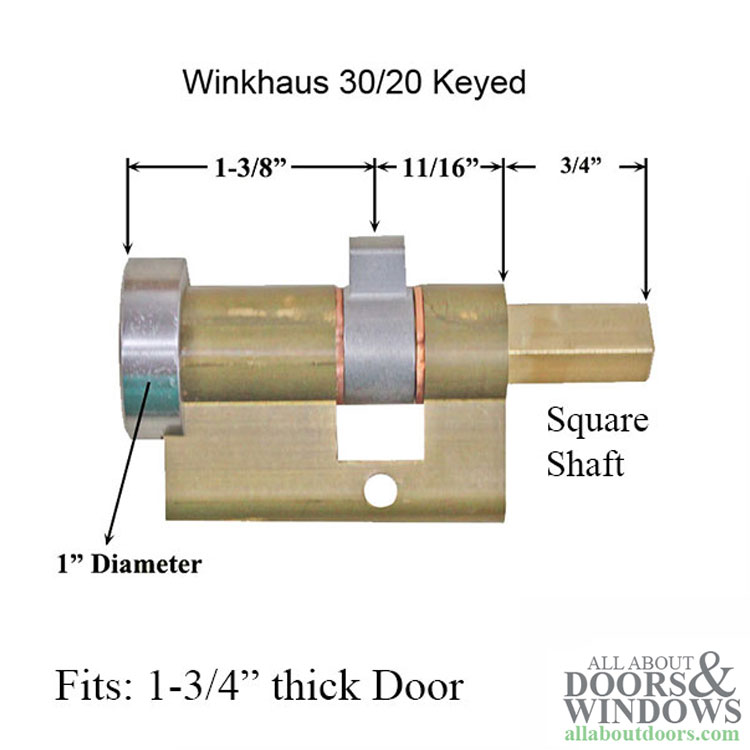

Cylinder Length: 1-3/4 inch (45mm)

Color / Finish:
Dark Bronze
PVD Ultra Steel
Satin Nickel
Chrome


Keyway: Schlage 5 pin SC1
Keys Included: 2
Sold Each

Cylinder Removal: Key is needed to remove cylinder

The cam in the center of lock freely rotates from the 10- 2 position after installed in the door.

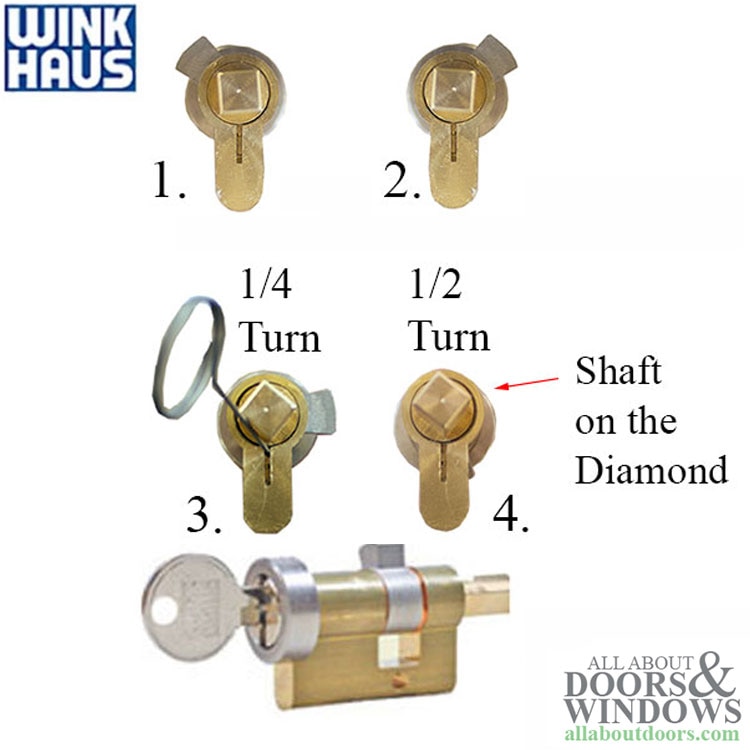

( see image # 1 and # 2 )

1. With the door unlocked, Insert Key into cylinder

2. Insert Wire tool provided with cylinder ( or paperclip ) into top of slot closest to square shaft.

3. Pull down on spring loaded slot until the thumbt urn shaft (or Key)  rotates either direction 1/4 turn ( see # 3 )

Note that the square shaft is on the diamond.

4. Rotate another 1/4 turn, in same direction until the shaft is on the Diamond. ( See #4 )

Note: the shaft has changed from square to diamond when removing or installing the cylinder.


Guide: Installtion and Removal of ECLIPSE Cylinder in WinkHause One Motion Locks
