HOPPE 16mm Four Roller Top Extensions
Hoppe Top Extension for the 4 Roller Version
Top Extensions have 2 rollers above the handle, locations as shown
All Roller versions have a 5/8" (16mm) wide faceplate
Used with 4-Roller Bottom Extensions
If you have any questions, please fill out the HOPPE lock worksheet and send it to us, and we will get back to you with our recommendations ASAP.
More sizes available - contact office if other sizes are needed
7 Products
8778855

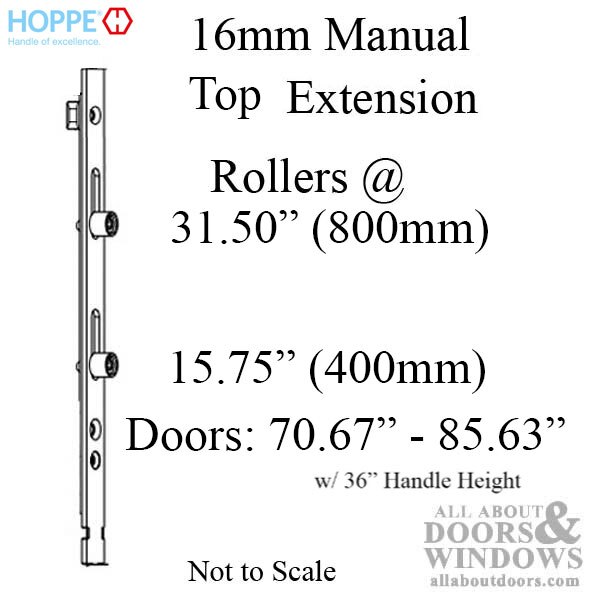

16mm Manual 4 Roller Top Extension, Rollers at 15.75" and 31.50"Doors 70.67" to 85.63"
8778863

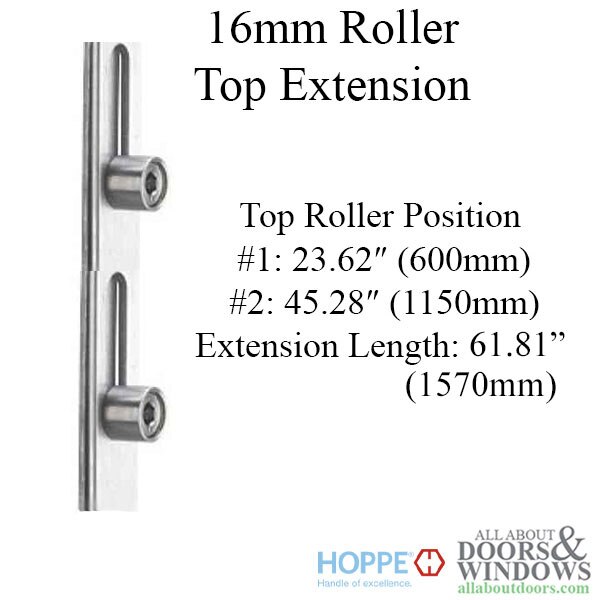

16mm Manual 4 Roller Top Extension, Rollers at 23.62 and 45.28", O.A. Length 61.81"Doors 84.45" to 99.41"
8778859

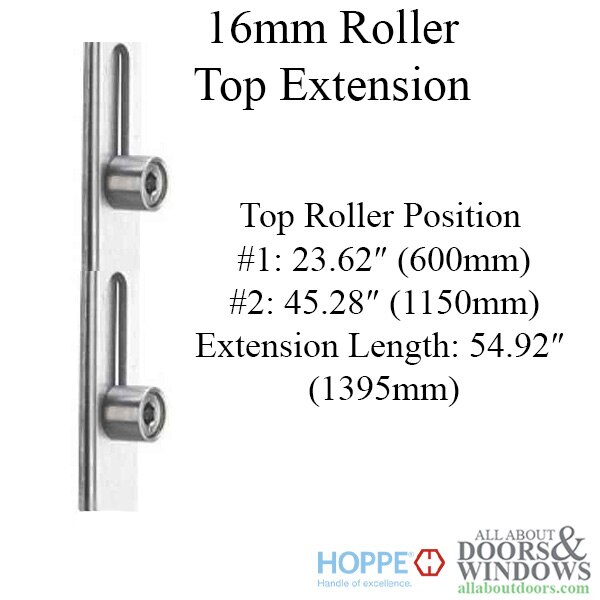

16mm Manual 4 Roller Top Extension, Rollers @ 23.62 and 45.28", 54.92" LengthDoors 84.45" to 92.52"
8778867

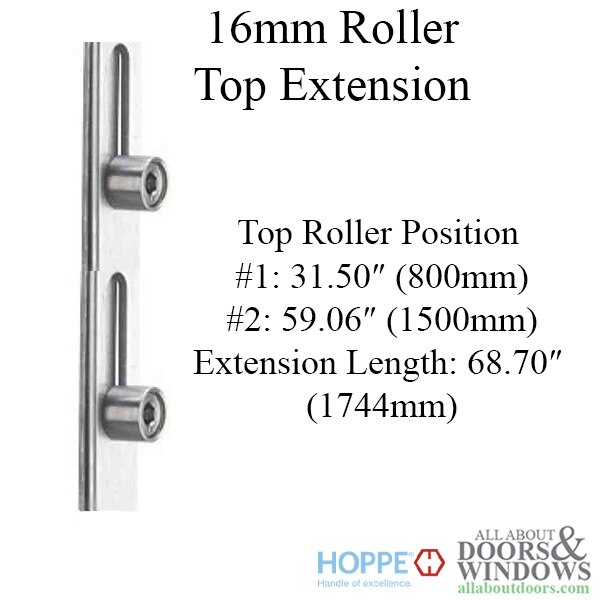

16mm Manual 4 Roller Top Extension, Rollers at 31.50 Inch and 59.06 Inch, 68.70Doors 98.23" - 106.30"
40005161
HLS9000 SWD Multipoint Operational Sticker, Left Hand, English, 3.5" x 11"Sticker Only
40005155
HLS9000 SWD Multipoint Operational Sticker, Right Hand, English, 3.5" x 11"Sticker Only
