Replacement Kit for Fuhr 3 roller Automatic Multipoint Lock

Part Number: 4990201-KIT
Price: $261.25

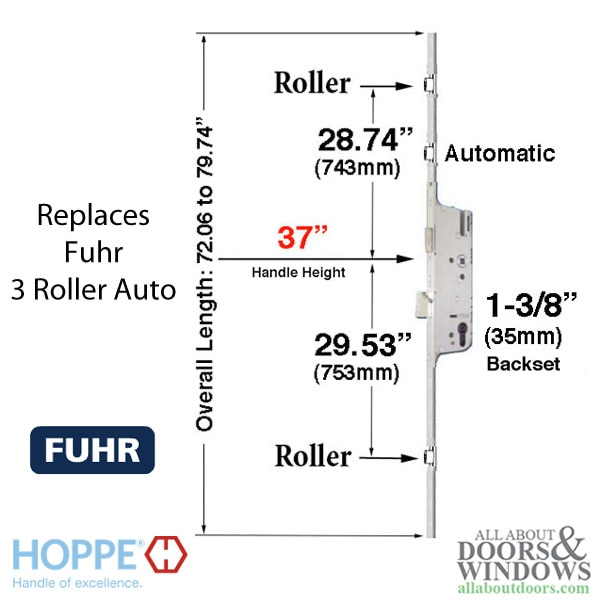

3 Roller Automatic Mutipoint Lock Replacement Kit with 37 inch Handle height
Used to replace the Fuhr 3 Roller Automatic Version Multipoint Lock
This is a Kit that Includes a Bottom Multipoint Lock Gear, Top Extension, Stainless Steel Screws, Underplate and Auto Release Roller Strike
Optional Strike Plates: Nickel or Oil Rubbed Brass

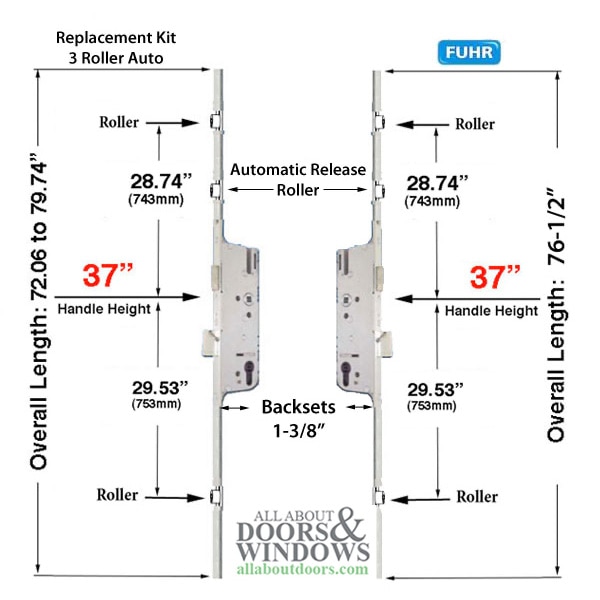

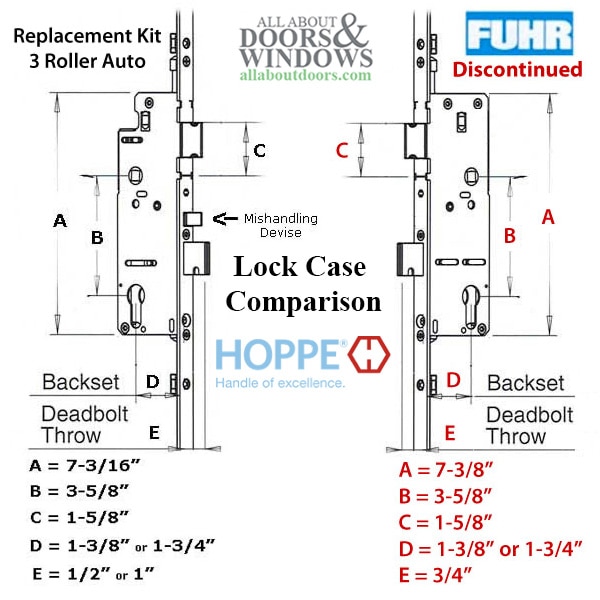

Fuhr 3 Roller Automatic vs. Replacement Kit 3 Roller AUTOMATIC Version
Handle Height: Fuhr - 37 inches, Replacement Kit - 37 inches (940mm)
Faceplate Width: 5/8 inch (16mm) wide - Same
Backset: 1-3/8 inch (35mm) - Same
Bottom Roller Position: 29.53 inches (750mm) when locked - Same
Top Roller Position: 28.74 inches (730mm) when locked - Same
Deadbolt Throw: Fuhr - 1/2 inch, Replacement Kit - 1 inch (25.4mm)
Automatic Release Roller: 6.38 when locks engage, 7.25 in Unlocked Position
Fuhr Overall Length: 76.5 inches - Heights vary by door
Replacement Kit Overall Length: 79.25 inch (2013mm) with 37 inch handle height
This lock is croppable up to 8.66 inches (20mm)

NOTE 1: The roller located about 7.25 inches (184mm) above the handle on the Fuhr lock is to trigger the automatic locking function. If replacing with the Replacement Kit - 3 roller Automatic Version, it will require replacing the Jamb strike with a new version.

NOTE 2: The Fuhr auto-roller moved horizontal the Replacement moves vertically. The rollers should move up and lock into place when the handle is depressed.

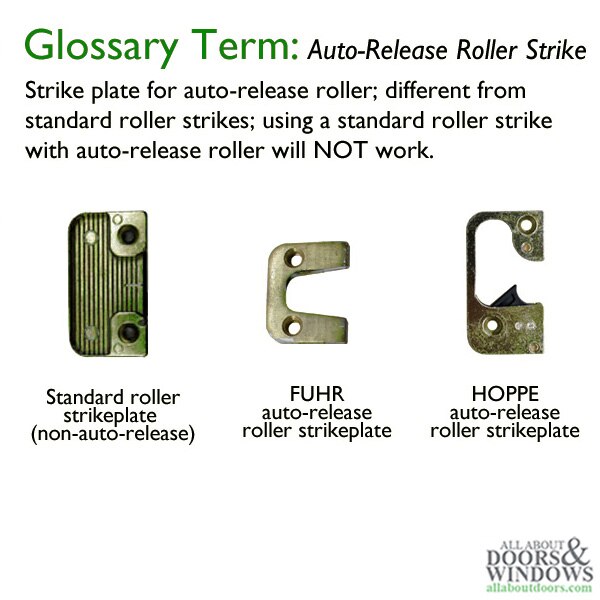

Once the door is closed, the auto pin hits the Auto Release strike and releases the rollers to the locked position (down).

NOTE 3: Roller is adjustable - The roller adjusts only in its spin, not up or down

To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms

If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here

Installation / Replacement Guide:How to Replace a FUHR Automatic Multipoint Lock.
