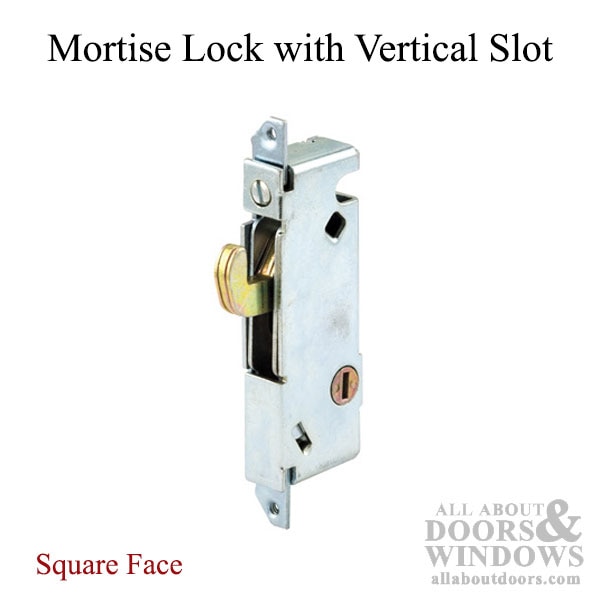

Mortise Lock for Sliding Patio Door with Unique Body and Vertical Keyway
Mortise lock for sliding patio door constructed of steel.
This lock requires a mortise installation.
It has a square end face plate with a Vertical keyway.
The hook projection is adjustable.
6-32 tapped thread on mounting flanges.
This design is used by manufacturers such as W&F.

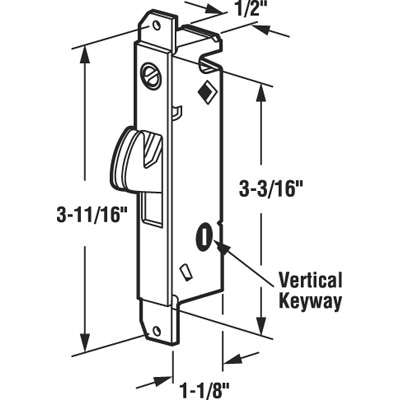

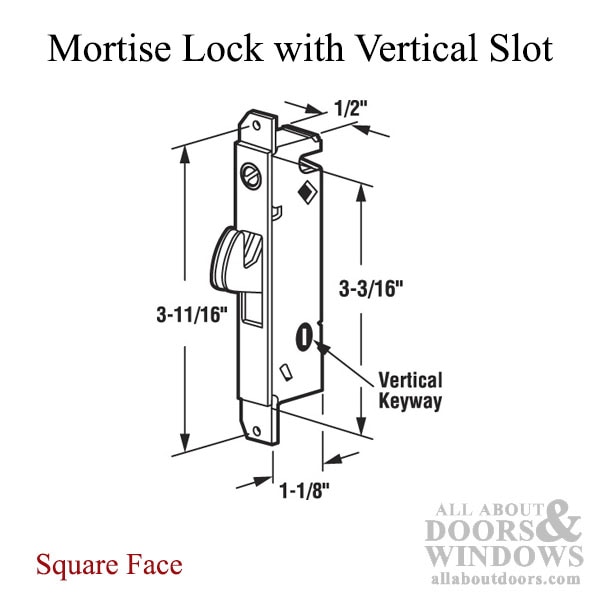

Hole Center: 3-11/16-inch
Backset: 13/16 inch
Keyway: Vertical
Contents
1 lock
Installation fasteners
Priced and sold each.
15073 - Auto Lock, 45 Degree slot when Locked - Steel
15026 - Auto Lock, 45 Degree slot when Locked - Stainless Steel
Related Adams Rite Mortise Locks:
15024 - 22.5 ° Slot - Round Face
15025 - 22.5 ° Slot - SquareFace
15026 - 45 degree Slot, Round Face - Automatic locking
15027 - 45 degree Slot, Square Face
15028 - 45 degree Slot, Round Face
15029 - Vertical Slot Square Face
15094 - Vertical Slot, Round Face
This lock requires a mortise installation.
It has a square end face plate with a Vertical keyway.
The hook projection is adjustable.
6-32 tapped thread on mounting flanges.
This design is used by manufacturers such as W&F.
Hole Center: 3-11/16-inch
Backset: 13/16 inch
Keyway: Vertical
Contents
1 lock
Installation fasteners
Priced and sold each.
15073 - Auto Lock, 45 Degree slot when Locked - Steel
15026 - Auto Lock, 45 Degree slot when Locked - Stainless Steel
Related Adams Rite Mortise Locks:
15024 - 22.5 ° Slot - Round Face
15025 - 22.5 ° Slot - SquareFace
15026 - 45 degree Slot, Round Face - Automatic locking
15027 - 45 degree Slot, Square Face
15028 - 45 degree Slot, Round Face
15029 - Vertical Slot Square Face
15094 - Vertical Slot, Round Face
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2012
SlideCo: 152471
Prime-Line Products: E 2012
SlideCo: 152471
