4-Point Lock for MW Doors - 3 Tongues, 1-3/8" Backset
4-point Multipoint lock used by MW door company
Tongue version Multipoint lock - 3 tongues + Deadbolt/spring latch
Replaces 499011999 (FUHR 4-point multipoint lock)
Overall Length: fits doors 91 inches to 93-5/8 inches
Backset: 1-3/8 inches (35 mm)
Bottom Tongue Position: 29-5/8 inches (below handle)
Middle Tongue Position: 26-1/2 inches (above handle)
Top Tongue Position: 49-1/2 inches (above handle)
Handle to cylinder PZ: 3-5/8 inches (92mm)
Handle-Height: 36 inches, can be cut to fit MW door with 34-1/2" handle height.
Maximum overall length: 93-5/8" before cutting.
Kit includes: bottom gear with 1 tongue, top extension with 2 tongues and installation screws
8778143 - 16 mm Manual Tongue Gear, 35/92, 1" deadbolt, Tongue at 29.65 Inch
2240631 - Top Extension with 2 tongues at 26-1/2 & 49-1/2 up from handle.
8785695 - SS Screws, (13 )

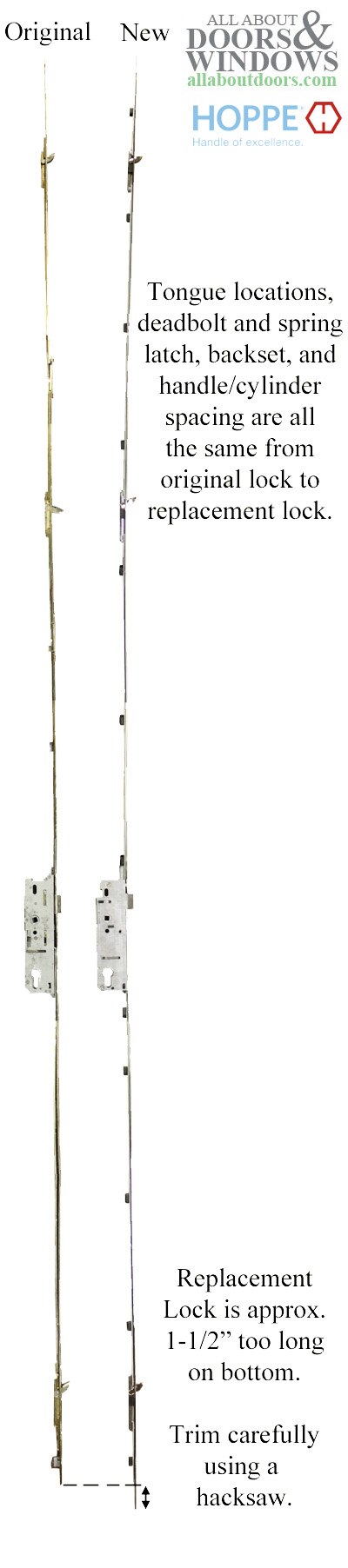

When using this lock to replace MW Door with FUHR 4-point lock, you will need to carefully use a hacksaw to trim about 1-1/2 inches off the bottom of the new lock to ensure that the handle reaches the correct height.
Read our guide to changing the handing of your HOPPE lock if the latch is facing the wrong direction.
Priced and sold as a package.
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Attaching HOPPE Multipoint Lock Top Extension
Rehanding a Hoppe HLS9000 Multipoint Lock
