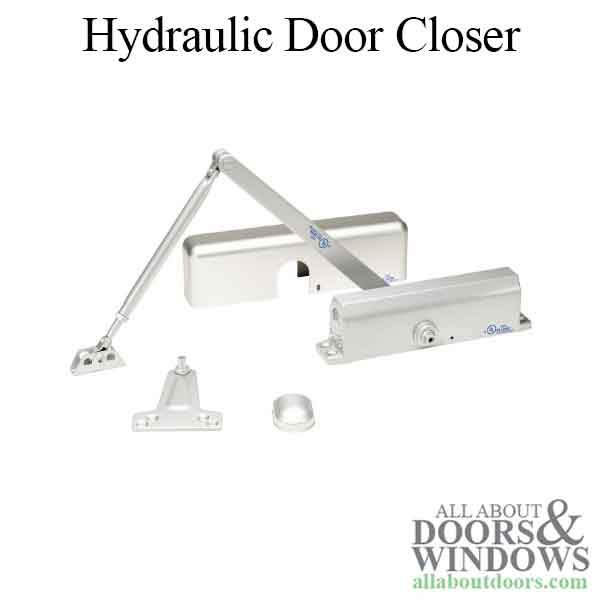

ADA Compliant Door Closer - Dual Valve -Adjustable # 1-4
ADA model offers adjustable spring power sizes 1- 4 for use on interior doors requiring less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs.
This complies with ADA handicap codes and ANSI/BHMA standard requirements.
Economical Streamline, Non-Hold Open, Non-Handed Door Closer
Includes one closer and all necessary hardware for Regular or Top Jamb Installation
UL Listed Closer: Yes
Adjustment Values: 2 - Speed and Latching
Dual valves to control closing and latching speeds.
Cast aluminum body in painted finishes.
Rack and pinion operation.
Non-handed, Non-Hold Open Closer for standard, top-jamb or parallel arm installation.
Hydraulic fluid for any climate operation and constant lubrication.
Mounts to most glass and aluminum doors without special adapters.
heavy duty threaded adjustable arm with lock nut.
Size: # 1-4 Adjustable Strength for Interior / Exterior Doors
Body Length: 9-7/8"
Screw Holes Height: 3/4 inch
Screw Holes Width: 9-1/16 inch
