Hoppe HLS9000 Automatic Tongue Gear for 45/92 Backset

Part Number: 8778291
Price:
$131.10

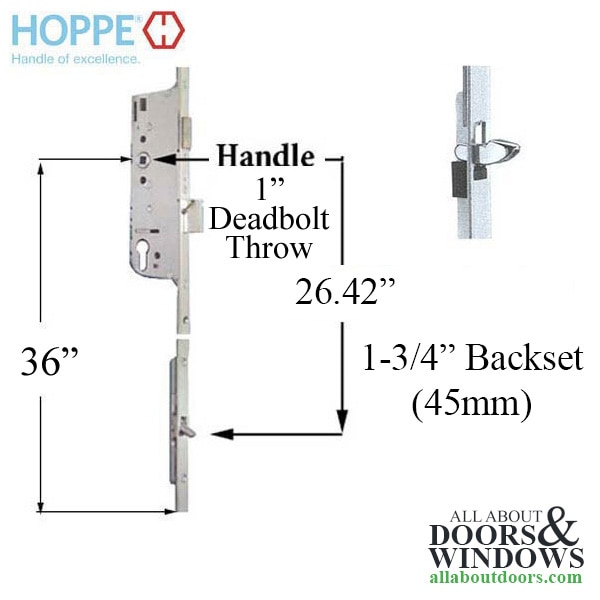

Hoppe HLS9000 Automatic Tongue Gear for 45/92 Backset


While offering security in the locked position, the HLS9000 tongue version retracts when opened, giving a smooth clean appearance. Automatic version engages multipoint when door is closed.

Backset: 45mm (1-3/4")
Deadbolt Throw: 25.4mm ( 1")
Handle Height: 914mm ( 36"), Max cut off 115mm ( 4.5") to fit 31.45" to 36" handle height
Lower Tongue: 671mm ( 26.42")
Faceplate: 16mm, Square End
