HLS-ONE 3-point Lock KIT, ACTIVE SYSTEM w/45MM backset, choose door thickness

HOPPE HLS-ONE-HLS9000 3-point Manual Tongue System for 8' (96'') high active panels.
Includes 45mm backset gear, top extension, stainless steel strikes and screws.
When Top and Bottom are connected fits doors from 79.13 to 99.41 inches tall

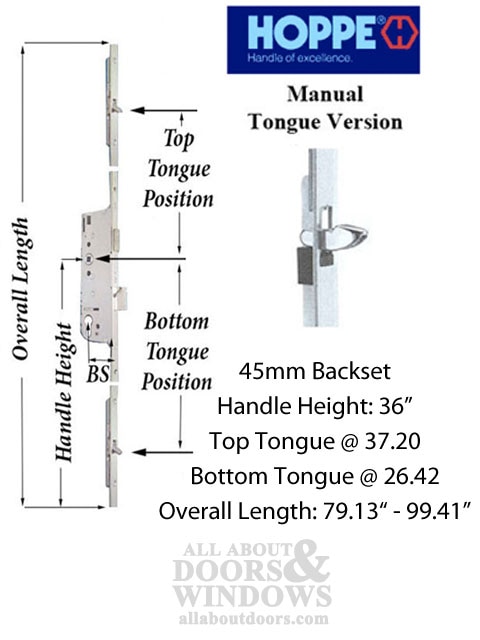

Lock Measurements:
Faceplate Width: 5/8 inch (16mm)
Backset Set: 1-3/4\'' inch (45mm)
Handle Height: 36 inches (914mm)
Top Tongue Position: 37.20 inches (945mm)
Bottom Tongue Position: 26.42 (671mm)

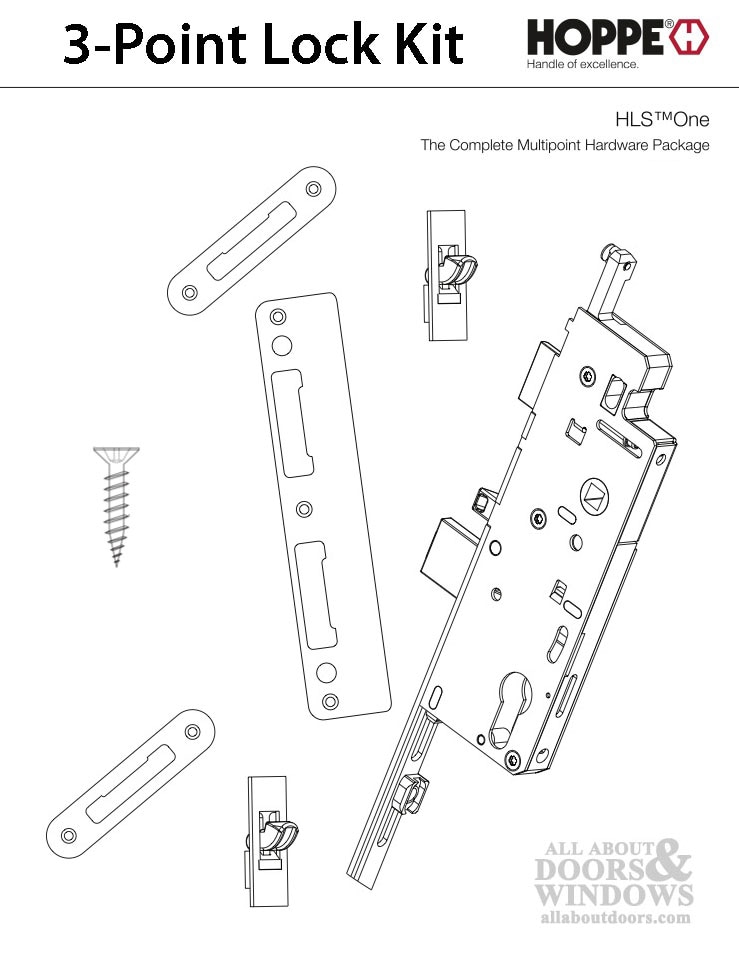

Kit includes:
1 - Top Extension; Tongue Position @ 37.20
1 - Bottom Gear, Tongue position @ 26.42
1 - Latch & Deadbolt Strike plate (Radius - Curve Lip) - Stainless Steel
17 - Stainless Steel Screws 1 3/8''
10 - Screws 3/4'' (10) - Stainless Steel
2 - Stainless Steel Tongue Strike plates with Radius corners
4 - Dust caps for Latch & Deadbolt with Tongues Strikes - Black
1 - Instruction booklet

Additional Resources:
How to change handing on HOPPE multipoint lock:
Written Article
Video
How to change direction of mishandling device on HOPPE lock
How to Connect a Top Extension to HOPPE Lockbox
