HLS-ONE 3-point Lock KIT, ACTIVE 6-8 Door w/45mm backset, choose door thickness

Manual Shootbolt System for 6-8 (80 inch) tall active door panels.

Complete kit Includes backset gear, top extension, stainless steel strikes and screws.
When Top and Bottom are connected fits doors from 76.61 to 80.55 inches tall.

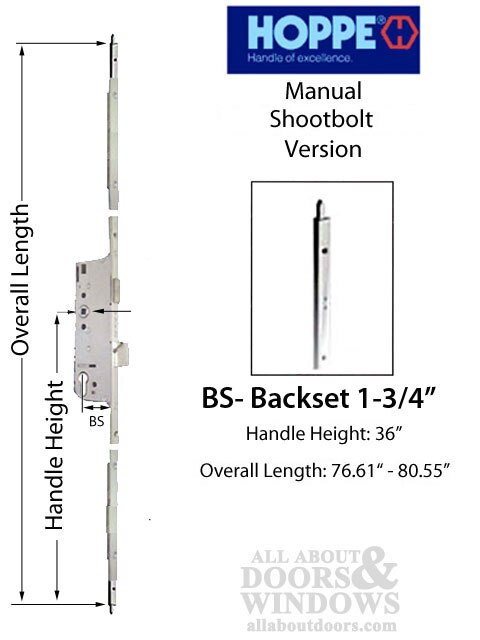

Lock Measurements:
Faceplate Width: 5/8 inch (16 mm)
Backset Set: 1-3/4 inch (45 mm)
Handle Height: 36 inches (914 mm)
Door Thickness: 1-3/4 inch (45 mm)
Door Panel Height: 76.61 to 80.55 inches (1946 mm - 2046 mm)

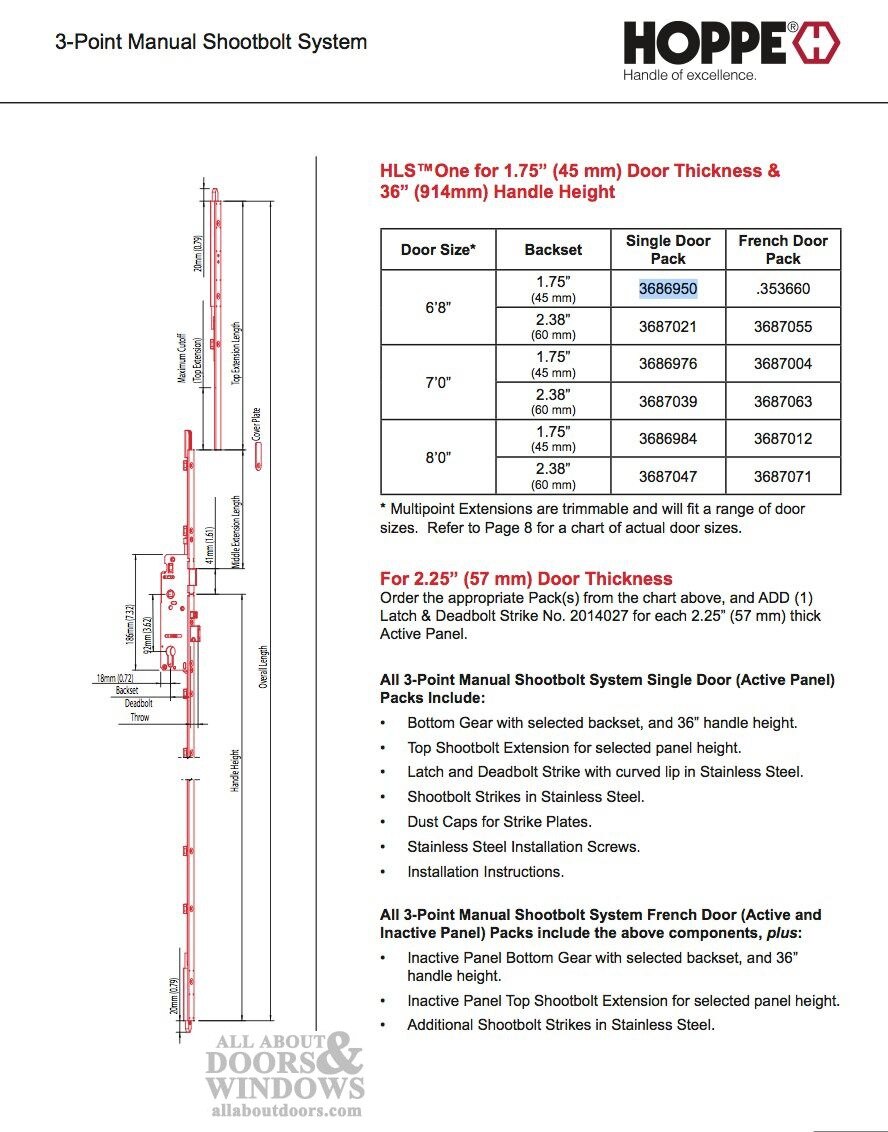

Kit includes:
1 - 8778331 16mm Bottom Assembly, 1-3/4 Backset w/ Shootbolt attached
1 - 8778691 Middle Extension
1 - 8778611 Top Shootbolt Extension
1 - 8787747 Latch & Deadbolt Strike plate, curved lip - Stainless Steel
2 - 2098911 Shootbolt Strikes, Top & Bottom
2 - 8786547 Dust caps for Latch & Deadbolt Strike
1 - 2875118 Cover / Connection Plate for middle to upper shootbolt
20 - 3176301 Installation Screws 1-3/8 inch
