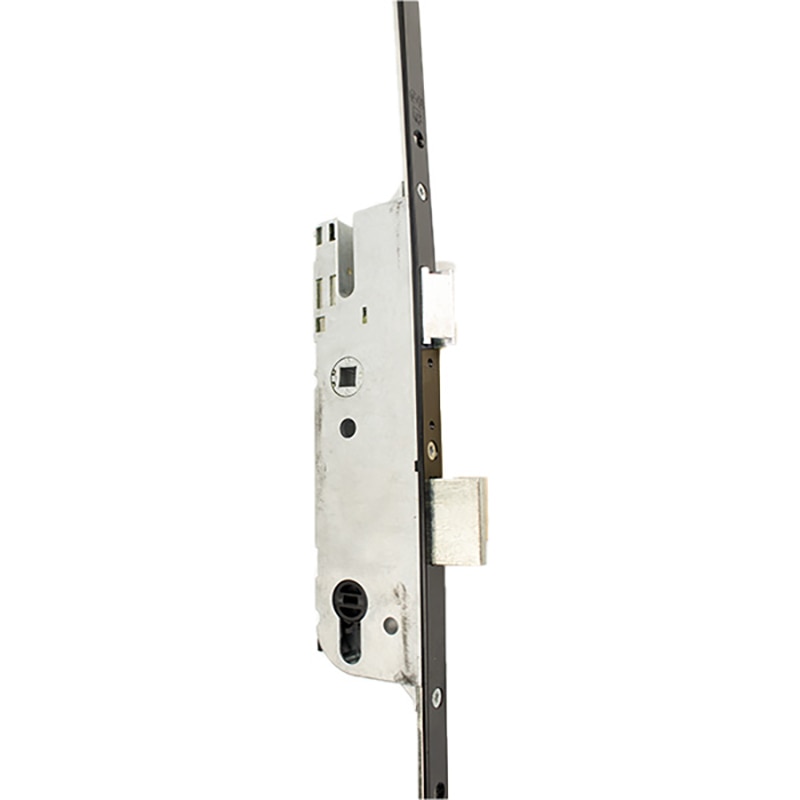

G-U Cremona Europa Active Multipoint Lock With Shootbolts

G-U Cremona Europa Active Multipoint Lock With Shootbolts

This lock is croppable and can be installed in doors over 81 inches with the use of an extension, which is not sold in this kit but can be purchased separately.

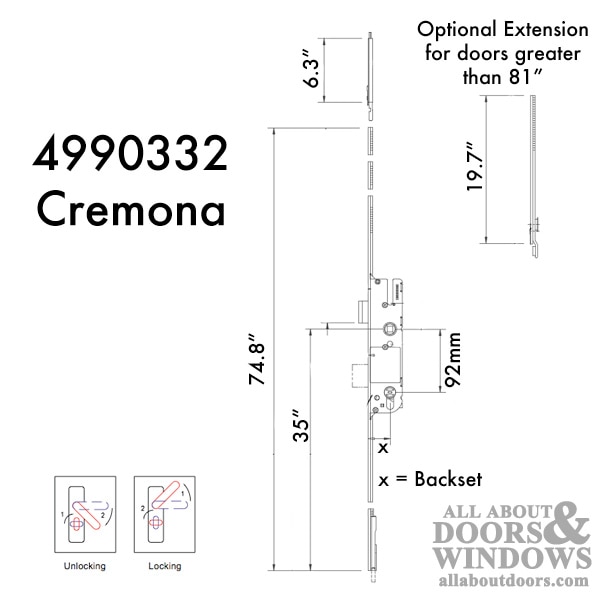

Specifications:

• Handle Height: 35 inches
• Standard Backsets: 1-3/8 Inch (35mm), 1-3/4 inch (45mm), 2 inch ( 50mm)
• Other Available Backsets: 30 mm, 40 mm, 55 mm
• Handle to Cylinder PZ: 3-5/8 inch (92 mm)
• Overall Length: fits doors up to 81.1 inches ( extension needed for taller doors)
• Faceplate Width: 5/8 inch (16 mm)
• Finish: Standard Ferguard silver, Optional; stainless steel or black
• Lock Body Style: Europa- Key Below Handle
• Cylinder: American version ( cylinder not included )
• Available Backsets: 30mm, 35mm, 40mm, 45mm, 50mm, 55mm

Kit Includes:

• Cremona Active Gear w/ bottom Shootbolt attached ( Backset from drop down )

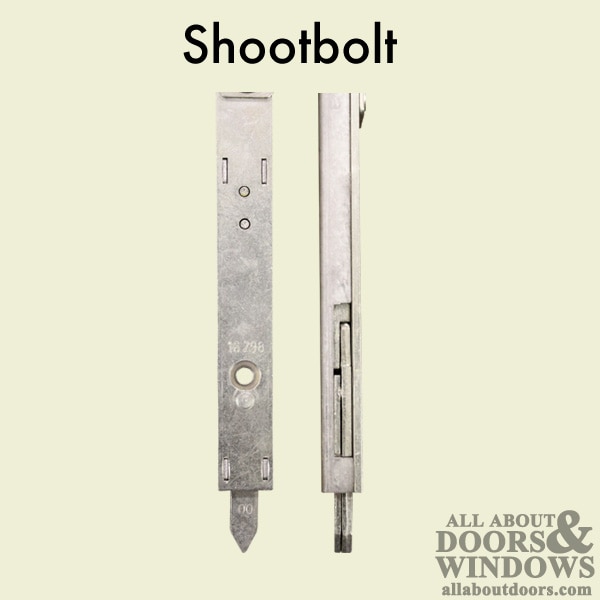

• G-16798-00-0-1 - Reversing Gear (Top Shootbolt Extension)
• 9-29525-00-0-0 - Socket Strikes, brass (2)
• E-12562-30-00-2 - Stainless Steel Screws (13)
• Priced and sold as a package.

Optional Parts:
G-16790-05-8 19.68'' (500mm) Top Extensions for doors greater than 81 inches

Additional Note: Replacement doors may be different heights - minor modifications required
If Door panel height: 77-1/4 inch; remove 4 inches from new one when in unlocked position
Replacement latch and deadbolt in slightly different position
File Hole in bottom of strike 1/8 inch on both latch and deadbolt

Additional Information:
How to Re-Hand a G-U/Ferco Multipoint Lock
How to Install G-U/Ferco Cremona Multipoint Lock

Step-By-Step Instructions:

1. Know that the backset is the distance from the edge of the door to the center of the hardware hole.
2. With a faceplate: measure from the edge of the door or faceplate to the center of the hardware hole. (Example: 2-3/4".)
3. European-style multipoint lock (open hardware hole): measure from the faceplate to the center of the hardware hole. (Example: 60 mm.)
4. Do not measure backset on an American-style lock with no faceplate — the reading will not be accurate.
5. If no hardware hole is visible: measure from the edge of the door to the center of the mechanism where the hole would be. (Example: 2-3/8".)
6. Patio door with extruded astragal: measure the same as the opposite door — from the faceplate to the center of the hardware hole.
7. Keyed / cylinder style: measure from the edge of the door to the center of the hardware hole or lock cylinder. (Example: 2".)
8. Storm door with a lip: measure from where the door edge would be if the lip were not there, to the center of the hardware hole. (Example: 7/8".)
9. Door with no mechanism installed: measure from the edge of the door to the center of the mechanism hole. (Example: 2-3/4".)

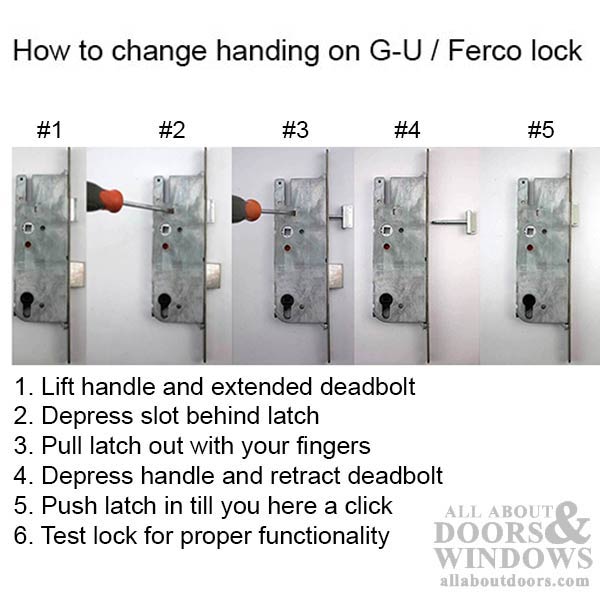

Step-By-Step Instructions:

1. Retract the deadbolt fully into the lock. You cannot rehand the latch while the deadbolt is engaged.
2. Fit a flathead screwdriver (or other thin flat tool) into the indent next to the latch.
3. Press into the indent to release the latch, then pull the latch out of the lock case.
4. Flip the latch to the orientation that matches your door swing.
5. Press the latch back in until you hear a click and it is fully seated.
6. Test the lock by hand before installing it back in the door.
