Fuhr 75 inch Tongue Version Multipoint Lock, 35mm backset - See Replacement Options
Replacement:
Worksheet - Please fill this worksheet out send it to us so we can help you find the correct lock.
This is a 75" Tongue Version Multipoint Lock made by Fuhr.
It features 2 Tongue Latch locking devices.
One is positioned 32-1/2" above center of Handle Cylinder
The other is positioned 29-1/2" below center of Handle Cylinder
This Multipoint Lock has been Discontinued, and is no longer available.
It must be replaced.

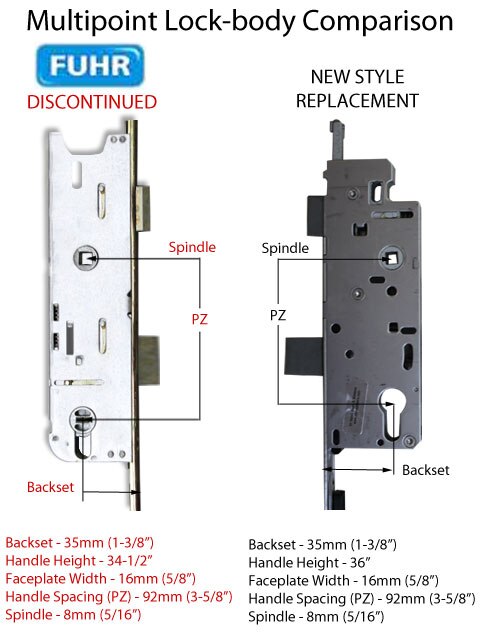

Discontinued Lock Measurements:
Overall Length: 75 inches
Faceplate Width: 16mm (5/8")
Backset: 35mm (1-3/8")
Handle Height: 34-1/2" ( Per Customer, actual unknown )
Handle Spacing (PZ): 92mm (3-5/8")
Top Tongue Position: 32-1/2" above center of Handle Cylinder ( Per Customer, actual unknown )
Bottom Tongue Position: 29-1/2" below center of Handle Cylinder

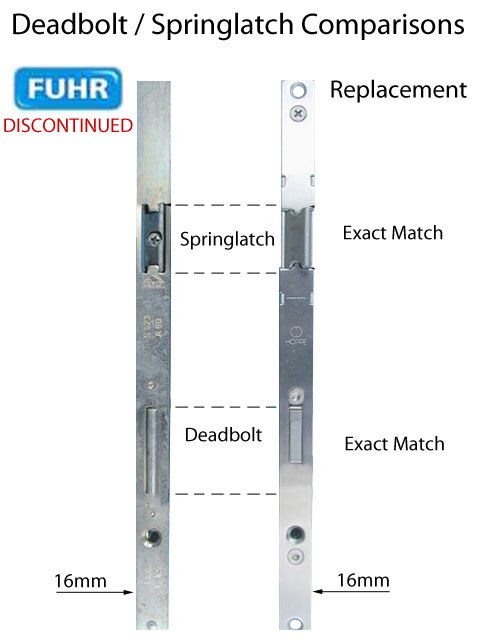

We have developed a Tongue Version Replacement Kit for the above mentioned lock.
(See Replacement Options)
Please check your measurements carefully to insure you have the correct replacement.
For detailed information on Lock Comparisons and Installation, please see the appropriate Article. (PENDING)
Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
