Forgings 10" Round Top Active Keyed Handle Set - Choose Color

Part Number: 395017
Price:$213.00 to $225.00
Forgings 10 inch non-handed active handle hardware for active hinged doors.
Outside - Keyed
Inside - WITH Thumbturn

This Handle Set is an excellent high quality replacement for Marvin Active Keyed Handle Hardware.
While the original Marvin Hardware is larger than the Replacement, the installation holes are the same.
This Handle Set is used by Ashland, Milgard, Marvin, Jeldwen, Caradco, Cantera, Delta, Pozzi, PGT and others.

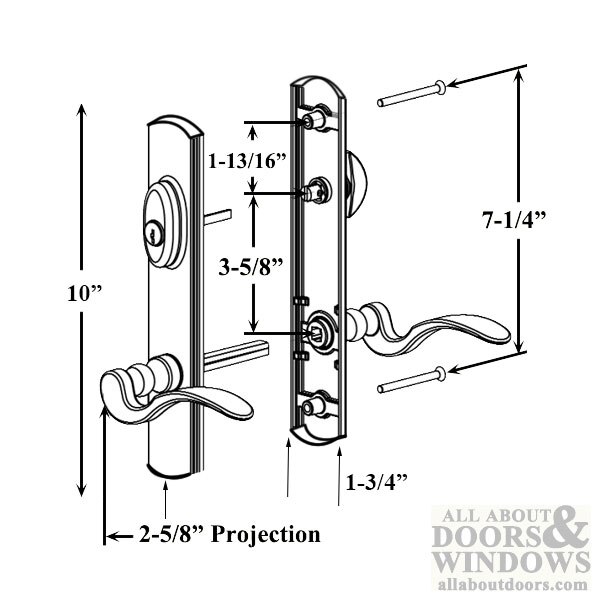

Plate Height: 10 Inch
Plate Width: 1-3/4 Inch
Hole Center: 7-1/4 Inch
Function: Active Keyed with Thumbturn
Door Configuration: #4 American Cylinder Above Handle; Exterior Keyed, Interior Thumbturn
Door Thickness: Standard 1-3/4 inch
Handing: Non-Handed fits Left and Right Handed Doors
Cylinder: American 5 Pin with Flat Tail Piece
Keyway: Schlage Rekeyable with 2 Keys
Plate Style: Round TopÊ
Handle Style: Transitional Curved Levers

Finishes:Ê(Some prices may vary and will require 2-4 weeks to receive.)
Oil Rubbed Bronze
Distressed Oil Rubbed Bronze
Distressed Nickel

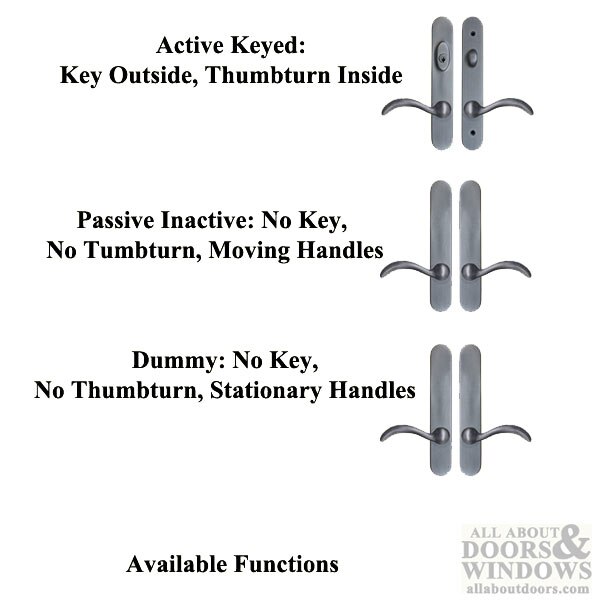

Available Functions: (Prices may vary.)
Active Keyed (Key Outside, Thumbturn Inside)
395018 - Active Non-Keyed (No Key Outside, Thumbturn Inside)
395019 - Passive Inactive (No Key, No Thumbturn but Handles move)
395019 - Dummy (Fixed Version, No Thumbturn and Handles do not move)

Be sure to check out Related Parts for all the other functions.

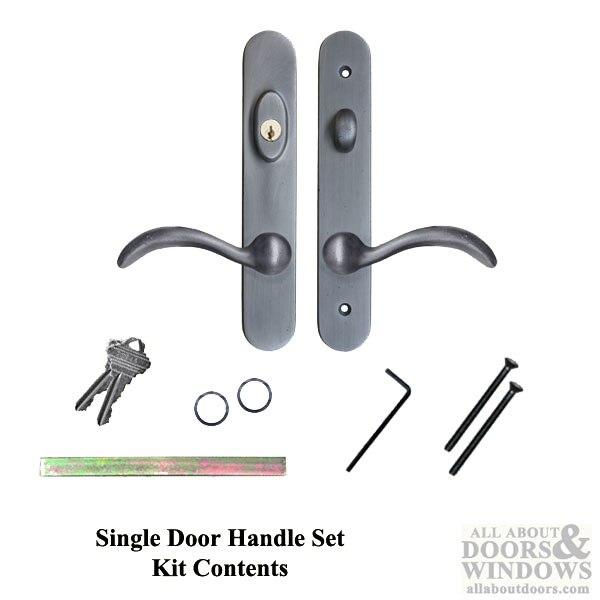

Includes one inside plate, one outside plate, two handles, one spindle, one hex wrench, two keys and installations screws.Ê

Priced and Sold as Set.
