Deadlatch, Exit Door, 31/32 Backset, LH w/ Flat Faceplate - Choose Color

Deadlatch Mortise Lock for store front aluminum narrow style doors
Steel construction Spring latch lock for commercial doors
Steel construction Dead Latch lock for commercial storefront doors use Spring Latch Extends 3/4''
Deadlatch may allow exit only
Commonly used for traffic control after hours or when someone wants door to lock when closing.

Description: Mortise Lock 31/32 inch Backset, Steel, Aluminum Finish
Material: Steel
Faceplate Color: available in Aluminum and Bronze
Backset: 131/32 inch with 1/8 inch thick faceplate attached
Backset is measured from edge of lock face to center of cylinder

PLEASE NOTE THE FOLLOWING:
1). Deadlatch locks comes in 3 backsets:
31/32, 1-1/8, 1-1/2 inch, please check measurements carefully.

2). Reversing the handing:  Some locks have a latch that can be pulled out and rotated 180 degrees.  If the latch will not pull out and rotate, see handing article Changing the Handing On a Commercial Mortise Deadlatch.

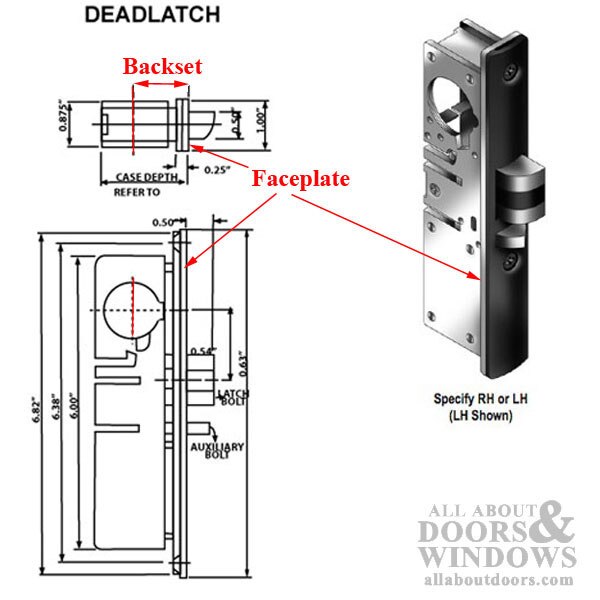

Specifications
• Lock Backset 31/32 inch - 1 1/8 inches
• Case Depth 1.63 inches - 1.78 inches
• Backset: 31/32 inch, 1 1/8 inches
• Hand: Non handed, easily reversible
• Face Plate: 1 inch W x 6 7/8 inches L - aluminum
• Case Dimensions: 7/8 inch W x 6 inches L x Depth specific to backset
• Latchbolt:
Deadlatch - 1/2 inch W x 1.0 inch L x 1/2 inch throw
• Deadlatches: Zinc alloy latchbolt with Delrin plastic insert, auxiliary bolt zinc diecast, deadlocks latchbolt and prevents manipulation.

Priced and sold each.
