Andersen Albany Active / Passive Double Hinged Door Hardware - BLEMISHED

This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.

Blemished items are priced accordingly and are sold as is.

No returns, refunds, or exchanges

Andersen Albany Style (Double Active / Passive) Hinged Door Hardware - Black
Works with 400 Series Frenchwood Hinged (In-Swing and Out-Swing) Patio Doors manufactured from 1988 to Present.
Andersen hinged patio door hardware set is for a (double active) hinged door in which two doors will open.
Works on the active and passive door panels.

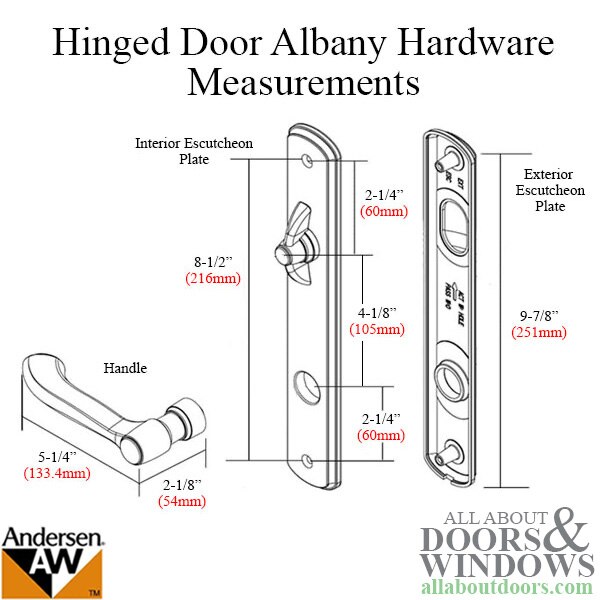

Measurements:
Width - 1-5/8 inch - 41.25 mm
Length - 9-7/8 inch - 251 mm
Center of Handle to center of Thumbturn (PZ): 4-1/8 inch - 105 mm
Neck: 2-1/8 inch - 54 mm
Length: 5-1/4 inch - 133.4 mm
Top screw hole to Bottom screw hole: 8-1/2 inch - 216 mm
Top screw hole to Thumbturn: 2-1/4 inch - 60 mm
Thumb turn to Handle: 4-1/8 inch - 105 mm
Handle to Bottom screw: 2-1/4 inch - 60 mm

Guide:How to replace an Andersen dummy cylinder with a keyed cylinder.
Related Andersen Parts:
9007546 - Albany Active Single Hinged Door Hardware - White
9007547 - Albany Active Single Hinged Door Hardware - Stone
9007548 - Albany Active Single Hinged Door Hardware - Gold Dust
9007549 - Albany Active Single Hinged Door Hardware - Black
9007550 - Albany Active Style Double Hinged Door Hardware  - White
9007551 - Albany Active Style Double Hinged Door Hardware  - Stone
9007552 - Albany Active Style Double Hinged Door Hardware  - Gold Dust
9007553 - Albany Active Style Double Hinged Door Hardware  - Black


Contents:
Complete hardware trim set includes inside and outside handles, inside and outside escutcheon plates, inside thumb latch lock, mounting studs, mounting bolts, gasket, spindle, set screws, bushings and installation instructions.

Note:
Exterior Keyed Lock 9007623 is sold separately. (Lock/unlock the door from outside with a key)

This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.
Blemished items are priced accordingly and are sold as is.
No returns, refunds, or exchanges.
