20mm P3000 Active 5-point 60/92 Rhino hook and Shootbolts, Doors 95 to 108-1/2

Part Number: 20-6760-32023
Price: $275.00

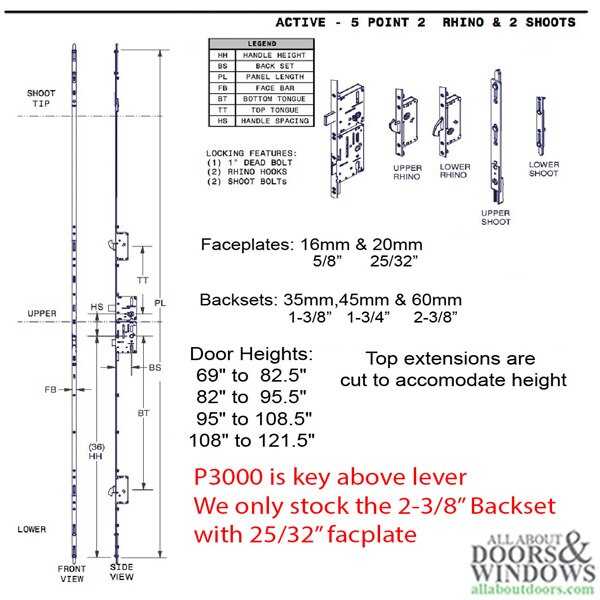

Amesbury 20mm P3000, 5-Point lock with Hooks and Shootbolts

Active Rhino hook and Shootbolts, fits Doors from 95 to 108-1/2  in height.


Cylinder Type: American, Key Above Lever

Faceplate Width: 25/32 inch (20mm)

Backset: 2-3/8 inch (60mm)

Deadbolt Throw: 1 inch (25.4mm)

Handle Height: 36 inches (914.4mm)

Handle PZ  - Cylinder spacing: 3-5/8 inch (92mm)

Spindle Hub: 5/16 inch (8mm)

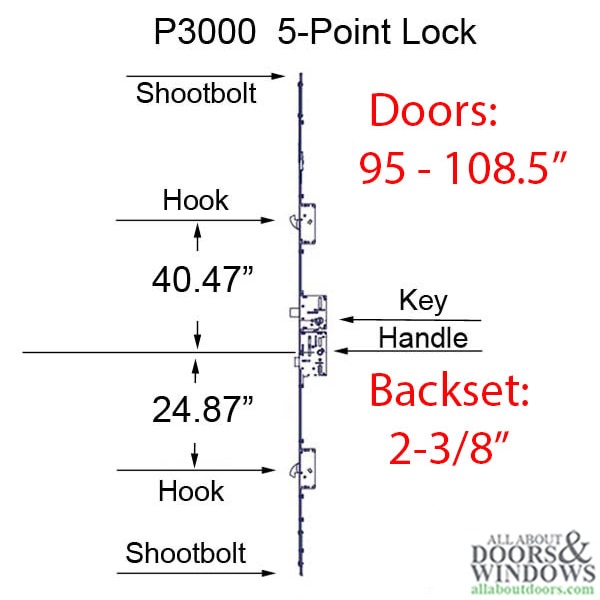

Lower Hook Position: 24.87 inches (631.698mm)

Upper Hook Position: 40.47  inches  (1,027.938mm)

Top Shootbolt Tip: # 3467 (not included with lock)

Lower Assembly Only: 20-

Upper Assebly Only:   A

Markings: 32023

Tongue versions are used with Astragals. The Rhino Hook and Shootbolt can be used with or without astragal.


How To Operate P3000 Lock - This is a different design than most Multipoint Locks

Sometimes referred to as babysitter lock beacuse the deadbolt can be lock without engaging the other locking devices.

1. To Lock Door: Throw the deadbolt, then, if desired lift handle to engage the Additional Locks

2. To Unlock Door: Retract deadbolt and push lever down to open

This lock is Deadbolt activated, use deadbolt first to lock or unlock door.


Related P3000 20mm Active Rhino 60/92 Complete Assembly, less top shootbolt tip:

676032021    20mm Active 5-point hook, 60/92  69.0 - 82.5"

676032022    20mm Active 5-point hook, 60/92  82.0" - 95.5”

676032023    20mm Active 5-point hook, 60/92  95.0” - 108.5"

676032024    20mm Active 5-point hook, 60/92  108.0 - 121.5"



Related P3000 20mm Passive Rhino 60/92 Complete Assembly, less top shootbolt tip:

656032013    20mm Passive 60/92   69.0 - 82.5"

656032014    20mm Passive 60/92   82.0" - 95.5”

656032015    20mm Passive 60/92   95.0” - 108.5"

656032016    20mm Passive 60/92   108.0 - 121.5"



Related P3000 Hardware:

20-3467: Shootbolt Tip

3475-82: Latch and Deadbolt strike plate
