20mm Manual Top Extension Shootbolt, 21.65" Length
Hoppe 20mm Top Extension for Manual Shootbolt Version.
The top shootbolt extension is used with different middle extension to achieve overall door height.

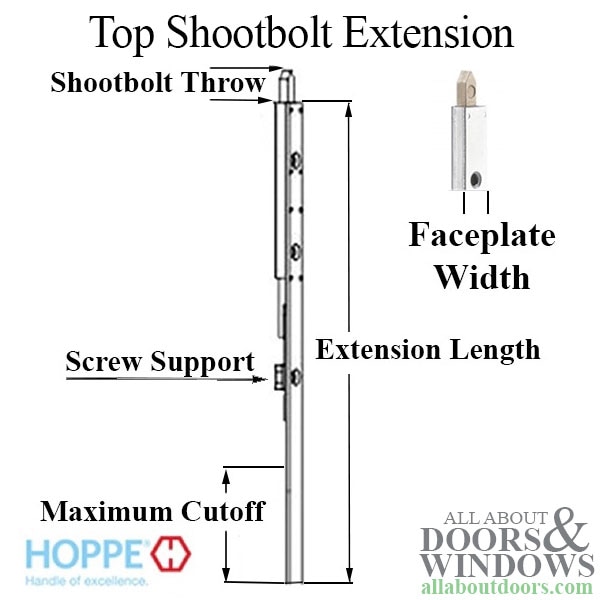

Faceplate Width: 3/4 inch (20mm) .787 inch
Top Extension length: 21.65 inches ( 550mm)

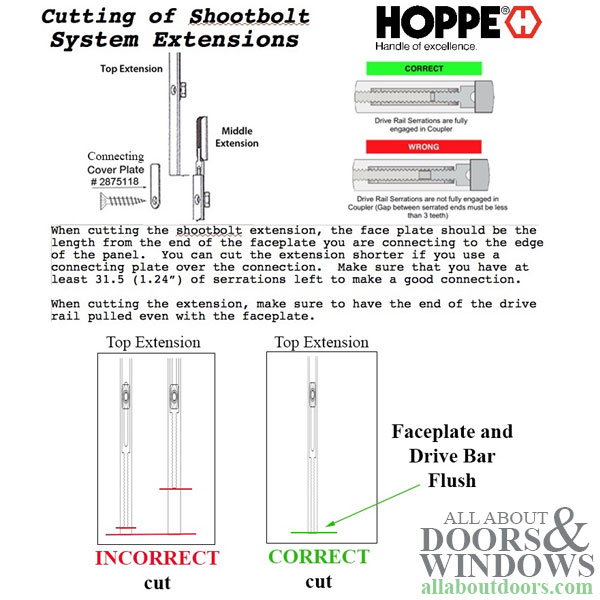

Maximum Cutoff: 3.94 (100mm) inches.
Number of screws: 4
Material: Stainless Steel

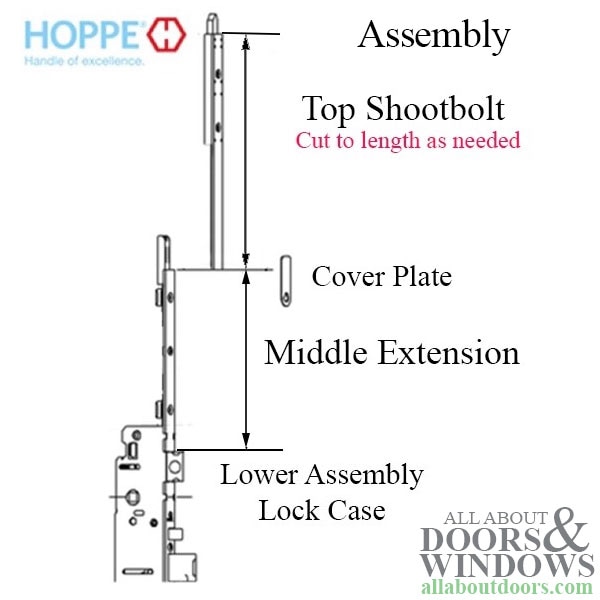

The Top Shootbolt Extension can be combined with five different middle extensions lengths.
Each is used to achieve different overall door heights.
20mm MIDDLE EXTENSIONS -
2185977 - Length 7.52 inches (191mm)
2424131 - Length 17.36 inches (441mm)
2186523 - Length 27.20 inches (691mm)
2185951 - Length 44.92 inches (1141mm)
2185934 - Length 62.64 inches 1591mm)
