20mm Manual 60/92 Gear, Tongue @ 26.42", 1" D/B, 36" HHå
This item is Discontinued and no longer available.

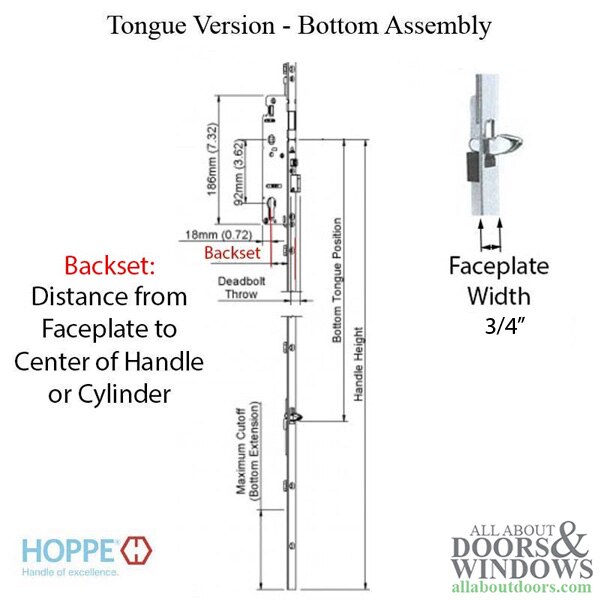

HOPPE HLS 9000 Multipoint Lock with Manual Gear, Tongue Version for Active Door with 20mm Faceplate
Lower Assembly includes lock case with face plate and bottom tongue attached

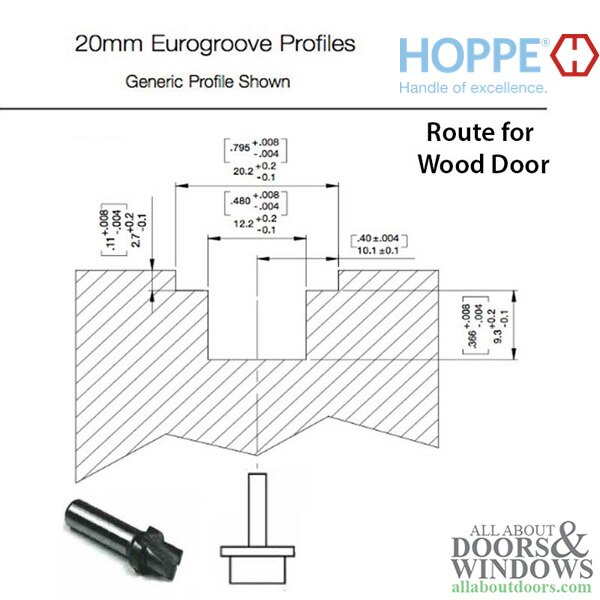

Faceplate Width: 3/4", 0.78" (20mm)

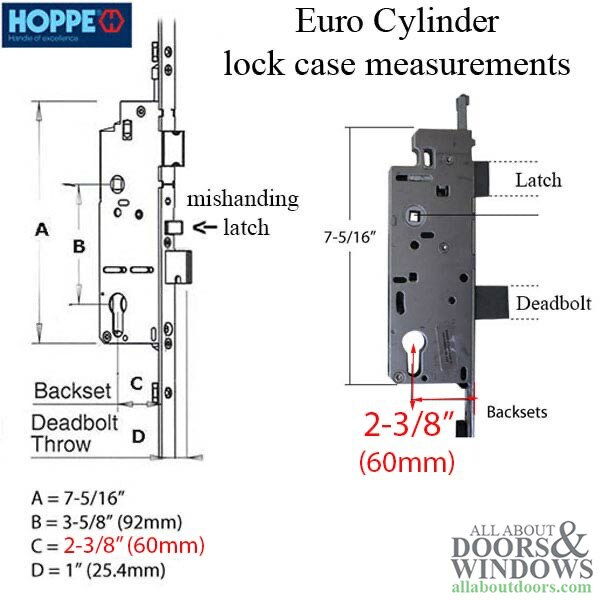

Backset: 2.37" (60mm)
Deadbolt Throw: 1.00" (25.4mm)
Handle Height: 36" (914mm)

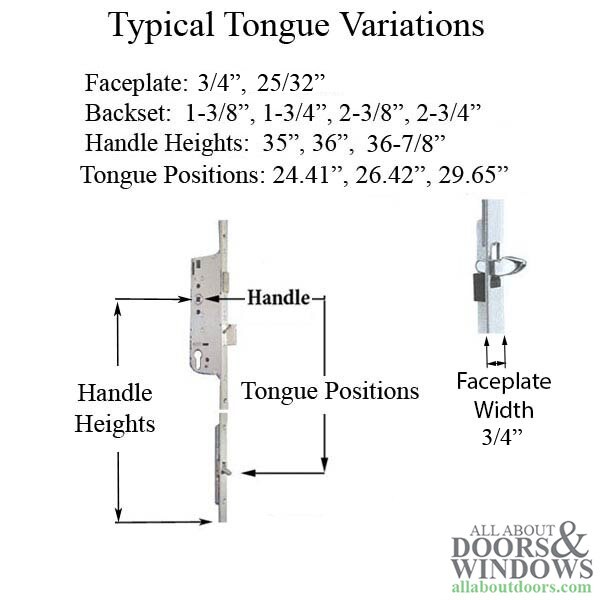

Bottom Tongue Position: 26.42" (671mm)
Maximum Cutoff : 4.53" (115mm)
Number of Screw: 6
Includes:
As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To Unlock door, Turn Thumbturn or key and then depress lever.
NOTE: The Profile cylinder will need a 3-3.25” length screw for a 70mm backset.
