Winkhaus One Motion Eclipse 35/30 57 Keyed Cylinder - Choose Color / Finish

Cylinder 35/30 Collar Key Knob PVD Ultra Steel 748
Winkhaus One Motion Eclipse Cylinder 35/30 65mm Full Cylinder, Thumbturn Knob Keyed
WHNA 35/30

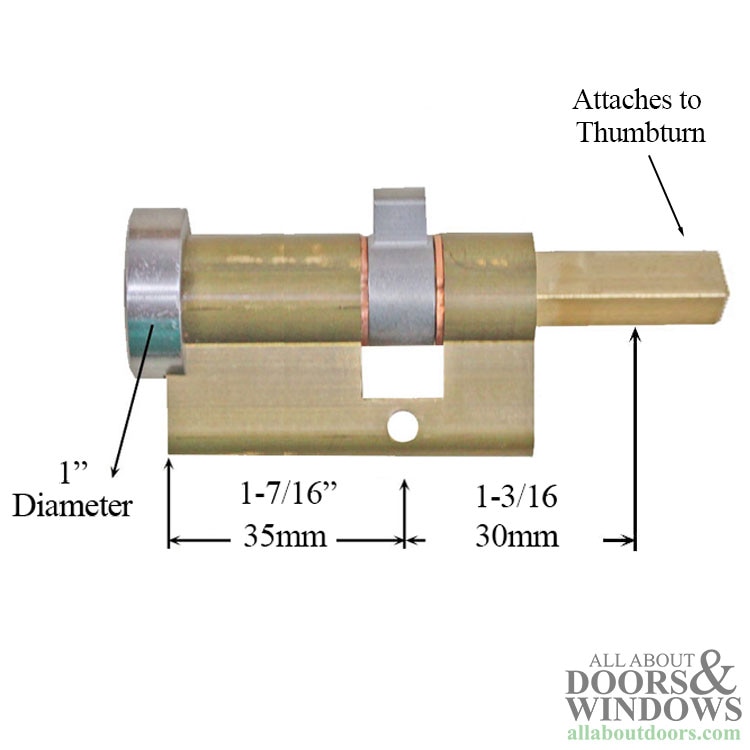

Cylinder Length: 2-1/4 inch (65mm) see image #2
Fits: One Motion Lock, fits a 2-1/4 inch thick door

Color / Finish: Collar piece
PVD Ultra Steel (Nickel Plated)
Oil Rubbed Bronze

Keyway: Schlage 5 pin SC1
Keys Included: 2

Cylinder Removal: Key is needed to remove cylinder

The cam in the center of lock freely rotates from the 10- 2 position after installed in the door.

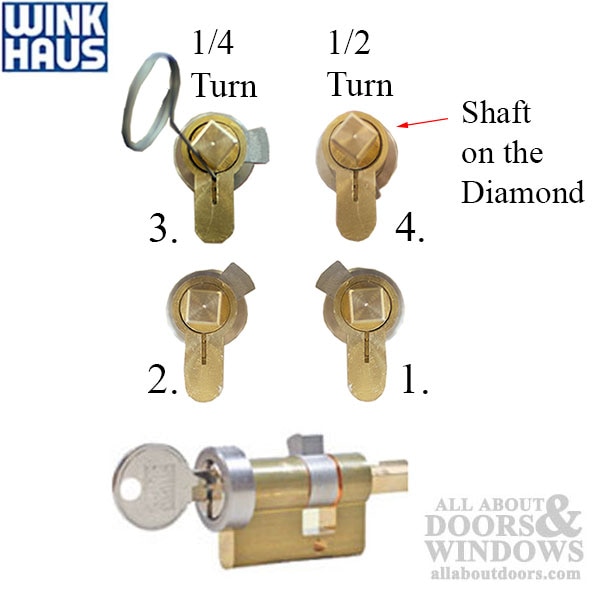

( see image # 1 and # 2 )

1. With the door unlocked, Insert Key into cylinder

2. Insert Wire tool provided with cylinder ( or paperclip ) into top of slot closest to square shaft.

3. Pull down on spring loaded slot until the thumbturn shaft (or Key)rotates either direction 1/4 turn ( see # 3 )

Note that the square shaft is on the diamond.

4. Rotate another 1/4 turn, in same direction until the shaft is on the Diamond. ( See #4 )

Note: the shaft has changed from square to diamond when removing or installing the cylinder.

Guide:Installtion and Removal of ECLIPSE Cylinder in WinkHause One Motion Locks
