Unavailable - Multi-Bolt Lock 45/68mm Handles, 45mm BS, Stainless - Schlegel

This part has been Discontinued and is no longer available for purchase.

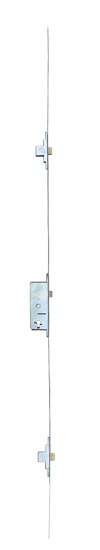

Schlegel 3-Point Multi-Bolt Lock

This is an 86\" bolt-version multipoint lock made by Schlegel.
It features a center deadbolt/spring latch and 2 bolt locking devices located 25-5/8 up and down from the center of the cylinder.

This lock is no longer available for purchase and must be replaced.

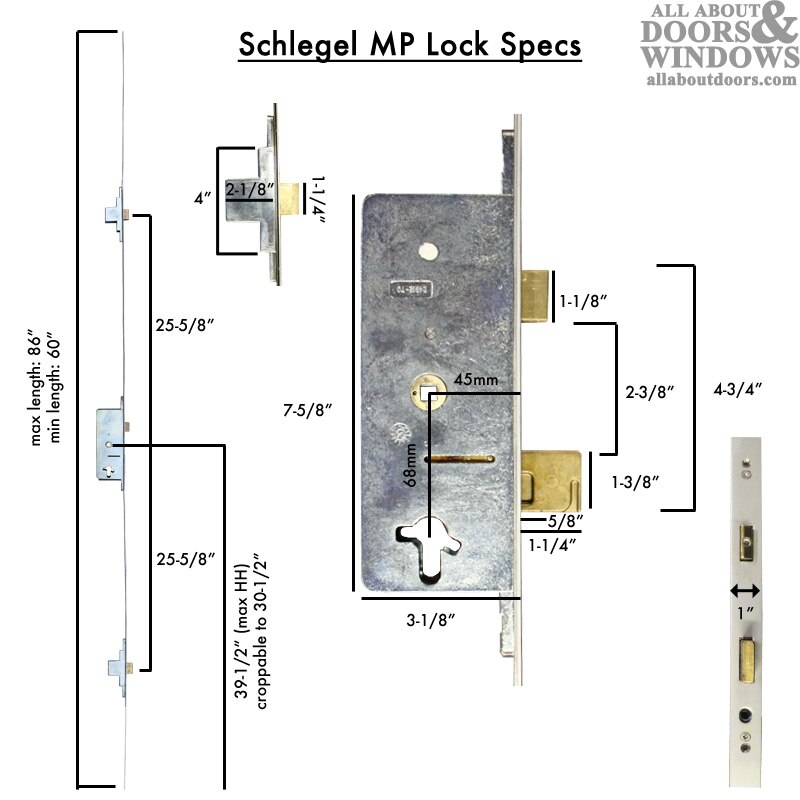

Measurements:
Overall Length: 86 inches
Handle-Height: 39-1/2 inches
Croppable on both top and bottom (this may be your lock even if shorter than 86 inches)
Faceplate: 1 inch wide
Top Bolt Position: 25-5/8 inches
Bottom Bolt Position: 25-5/8 inches
PZ Handle-to-Cylinder Spacing: 68mm
Lock Body: 3-1/8 deep by 7-5/8 tall
Backset: 45mm


We have developed a tongue version replacement kit for this lock, and we have written an article to guide you through the replacement process. Replacing this lock will require you to change or replace your handles.

Replacement kit: 4990283 *NOTE: When replacing 55mm Schlegel, make sure to select 60mm backset on drop-down menu when ordering replacement lock.

Article: How to Replace a Schlegel 3-Point Lock
