Truth Mounting Bracket - 40538 Cone / Tapered Rivet
Truth Mounting Bracket for Multi-Point Sash Lock Used in Tie Bar Applications.
Used with 55664 and 55665 Sash Locks.
Number 40538 is embossed in mounting bracket with a tapered / cone-shaped nylon sleeve for rivet.
The mounting plate is Truth # 40539

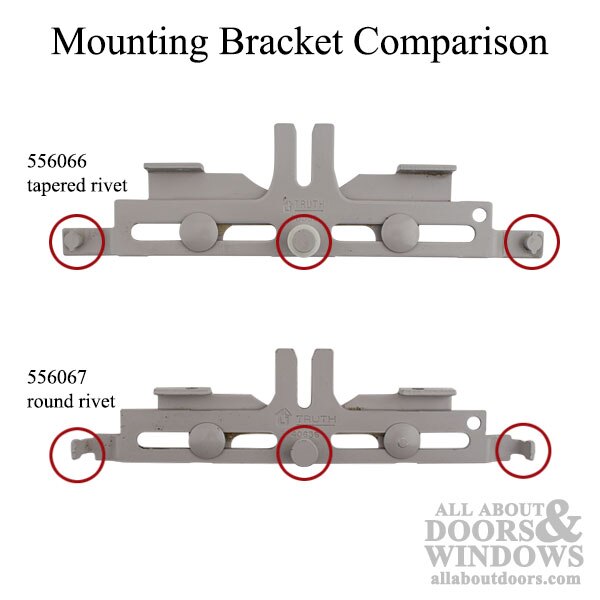

Note: There are two different Brackets -
# 556066 have a tapering nylon sleeve on the rivet that these handles operate.
# 556067 that has a cylindrical nylon sleeve, The end attachments look different also.

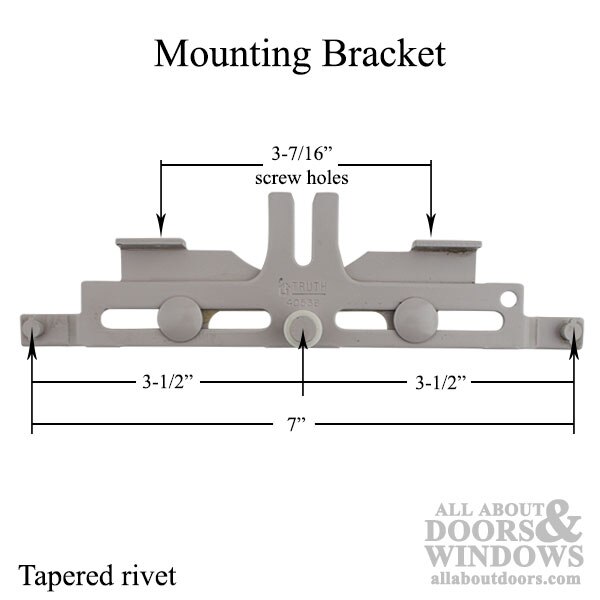

Measurements:
Screw Holes: 3-7/16 inches
Rivet to Tip: 3-1/2 inches
Length: 7 inches
Priced and sold each.
Limited to existing inventory. Once sold out, replace with kits 55664 or 55665.
No returns, refunds, or exchanges.
Used with 55664 and 55665 Sash Locks.
Number 40538 is embossed in mounting bracket with a tapered / cone-shaped nylon sleeve for rivet.
The mounting plate is Truth # 40539
Note: There are two different Brackets -
# 556066 have a tapering nylon sleeve on the rivet that these handles operate.
# 556067 that has a cylindrical nylon sleeve, The end attachments look different also.
Measurements:
Screw Holes: 3-7/16 inches
Rivet to Tip: 3-1/2 inches
Length: 7 inches
Priced and sold each.
Limited to existing inventory. Once sold out, replace with kits 55664 or 55665.
No returns, refunds, or exchanges.
