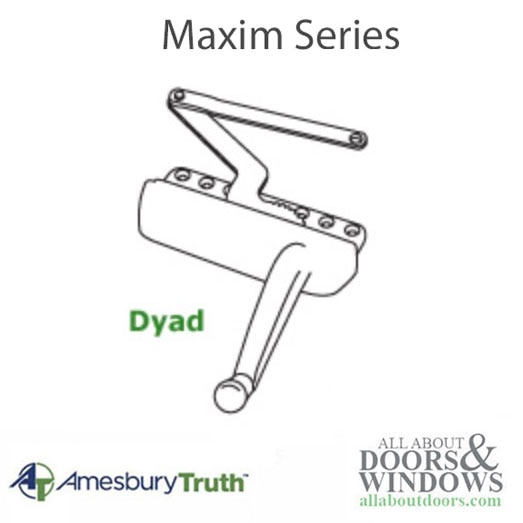

Truth Maxim 50.50 Dyad Operator, split arm, Sill Mount Right Hand - CHOOSE COLOR
Discontinued Amesbury Truth 50.50 Maxim Dyad casement window operator for sill mount installation.
Truth 50.50 Surface mount Series are being phased out, Replaced with the Encore Series.
Markings: Truth link number: 31876
This sleek style operator was used by Caradco, Crestline, Hurd, Lincoln, Vetter, Weathershield and many other window companies from 1999 to 2019.
Application: Casement windows, sill mount
Glass Size: 11 or 15 inch casement window
Arm Link: Offset Down

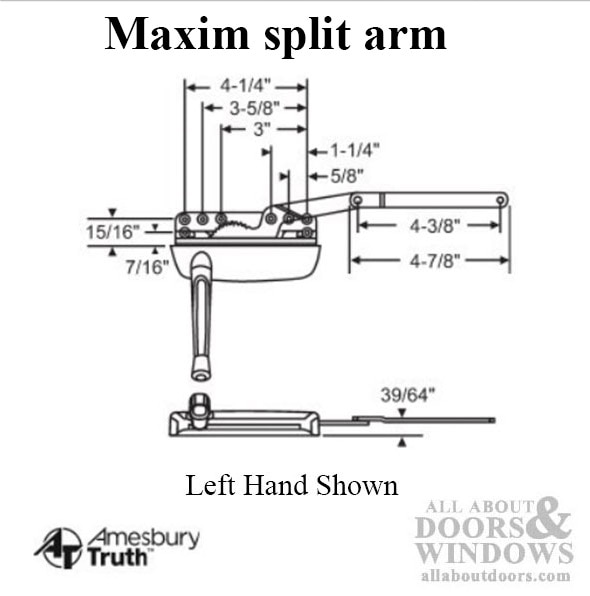

Link Length: 4-7/8 inch
Link Hole Centers: 4-3/8 inch
Clip: None, Snap on type
Color/Finish: Choose from colors listed
Handed: Yes, Left and Right Hand as shown
Material: Die cast body, stamp steel arm with E-Gard corrosion resistant finish or coastal stainless steel
Priced and sold each, no crank handle, no screws
Recommended screws: 6 #8 x 1 Flat head sheet metal, not included
Related Truth Hardware:
11454.xx Contour handle
11329.xx Folding handle
xx Denotes color options
NOTE:
The Maxim Operators are being phased out June 2019
If you do not find the color you want the Maxim can be replaced
Replacement Items:

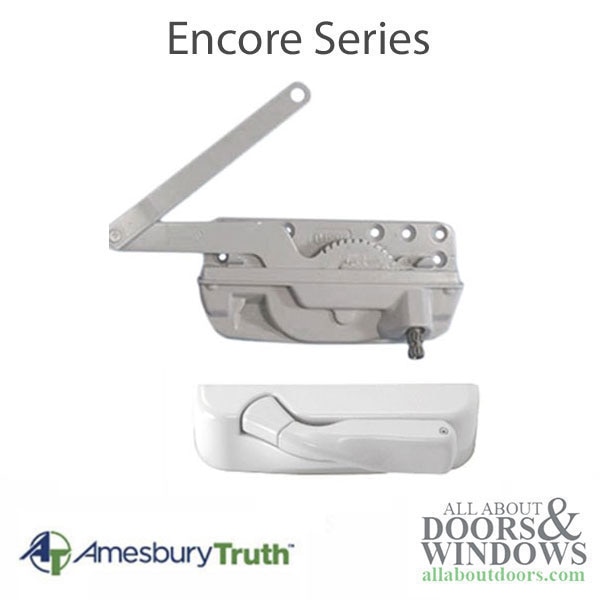

Encore series 51.60-RH
New Cover and folding handle
TH-24082, TH-24083, TH-24182, or TH-24183
