Truth 13.17 Awning Window Hinge and Track, Pairs 26" - E-Gard® Steel
Amesbury Truth 13.17 series concealed awning window hinge assembly. Stainless Steel Track and E-Gard steel corrosion resistant hinge arms
Truth Part: 13.17

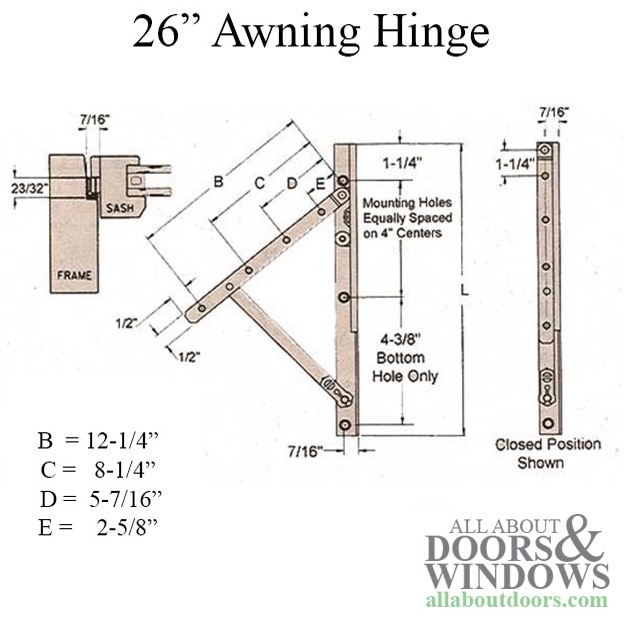

Track Dimension: 26 inch Length
Sash Weight: 61 pounds Maximum
Sash Height: 34-42 inches
Priced and sold in pairs.
Includes 1 left and 1 right hand Track and Hinge arms, No Screws
Related Truth Awning Hinges:
13.13-AWN-KIT-EG 10 inch E-Gard Steel
13.43-AWN-KIT-SS 10 inch Stainless Steel
13.14-AWN-KIT-EG 14 inch E-Gard Steel
13.44-AWN-KIT-SS 14 inch Stainless Steel
13.15-AWN-KIT-EG 18 inch E-Gard Steel
13.42-AWN-KIT-SS 18 inch Stainless Steel
13.16-AWN-KIT-EG 22 inch E-Gard Steel
13.45-AWN-KIT-SS 22 inch Stainless Steel
13.17-AWN-KIT-EG 26 inch E-Gard Steel
Additional Information:
Truth Hardware awning and casement window hinges are handed and come packed one left and one right per package.
The window hinges have an E-Gard® bottom track with two E-Gard® support arms and a plastic acetal slide shoe. The support arm has a brass snap stud for ease of installation or removal of the window sash.
The Truth Hardware awning window hinges are used by many window manufacturers.
Recommended Screws: Wood #7 x 3/4 inch Phillips flat head sheet metal screws to match track material.
Recommended Screws: PVC #7 x 3/4 inch Phillips flat head, Undercut sheet metal screws to match track material. Actual screw size may vary depending on application and window material.
