Trilennium 3070, 65-9/16, 8-0 door, Right Hand In Swing, 2-3/8 Back Set, 7/8" Face, No Strikes

Part Number: 499130074
Price:$420.80 to $430.04

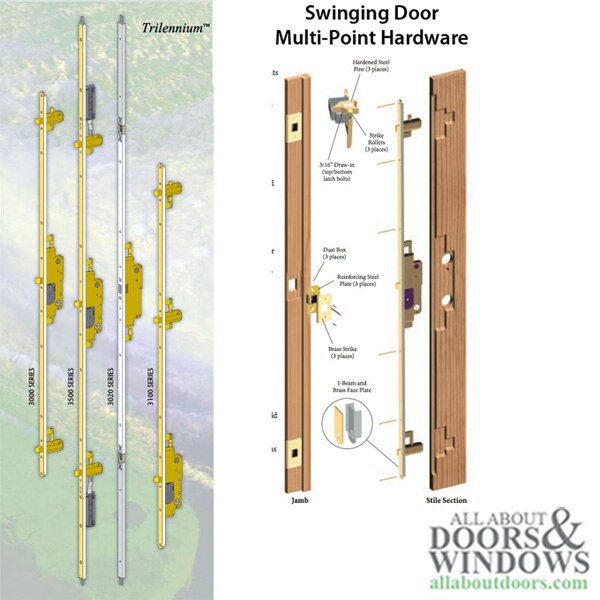

Trilennium 3070 series multipoint lock with locking latch bolts used by Pella and others.

No Strike Plates, Lock assembly only

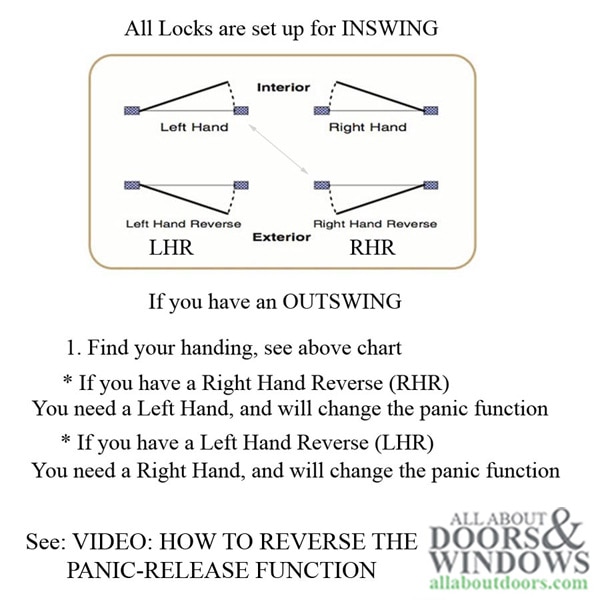

IMPORTANT - all locks are set up for INSWING doors. If you have an OUTSWING the Panic function needs to be changed before installation. If door is Outswing, use the opposite handing and change the panic function. LHIS will use an RHIS

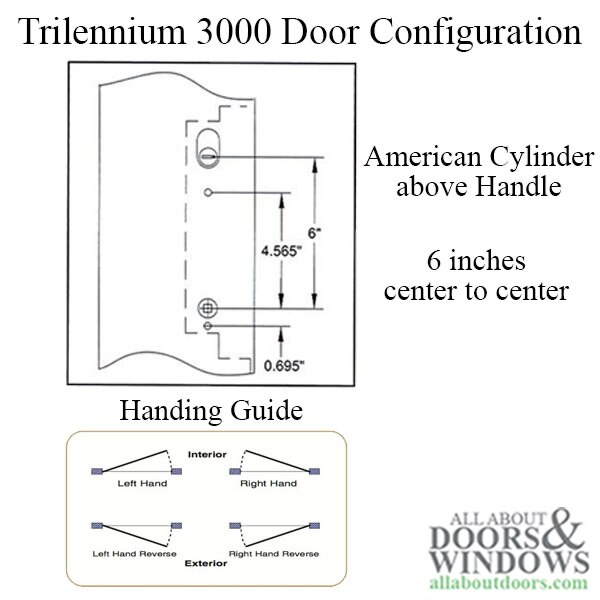

Lock Measurements:

Backset: 2-3/8 (60 mm)

Faceplate Width: 7/8 inch (22mm)

NOTE: Faceplate widths can be 7/8 or 1 inch wide

Faceplate Length: 65-9/16 inch (1,665.29 mm) Radius ends

Faceplate Color: Stainless Steel

Deadbolt Throw: 15/16 inch (23.81mm)

Top Latching Bolt: 33-3/32 inch ( 840.58mm)

Bottom Latching Bolt: 24-5/16 inch ( 617.54)

Spindle Diameter: 1/4 inch ( 7 mm)

Cylinder Type: American with Flat tailpiece

Made in USA



Handed: Yes, Set up for Left or Right Hand doors

Handing: Right-handed Inswing

Note: As viewed from the outside, the hinge determines handing - If the hinge is on the Right, it is Right-hand door.



Operation:

The handle moves down only

To lock - Use key or thumb turn - Extends Latch to Deadbolt function

To unlock - Use Key  Outside or Thumb Turn / Lever Inside

Panic Release: Yes, Pressing down on the inside handle will unlock the door



HARDWARE NOTE:

Standard Cross Bore: 2-1/8 inch (Use Trilennium Pinnacle, Eclipse, Rectangular, Curved or Grip Hardware)

Optional Crossbore: 1-11/16 (Use handle plate width 1-7/8 or wider)

The Horizon, Europa and Emtek plates are only 1-7/8-2" inches wide and will not cover the 2-1/8 inch crossbore used by Pella and other doors with larger holes

Rocky Mountain 2-1/2 wide plate fits either crossbore.



Related Parts:

499130054Optional: 3 strikes, 3 Reinforcing plates, 3 Dust Boxes with Screws
