3000 Trilennium Multipoint Lock 6-8 Door Right Hand Inswing - Choose Finish

Part Number: 499130002
Price:$375.60 to $395.27

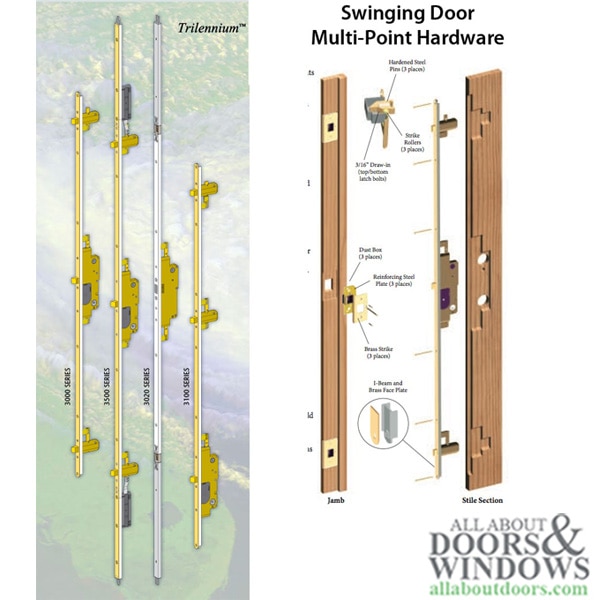

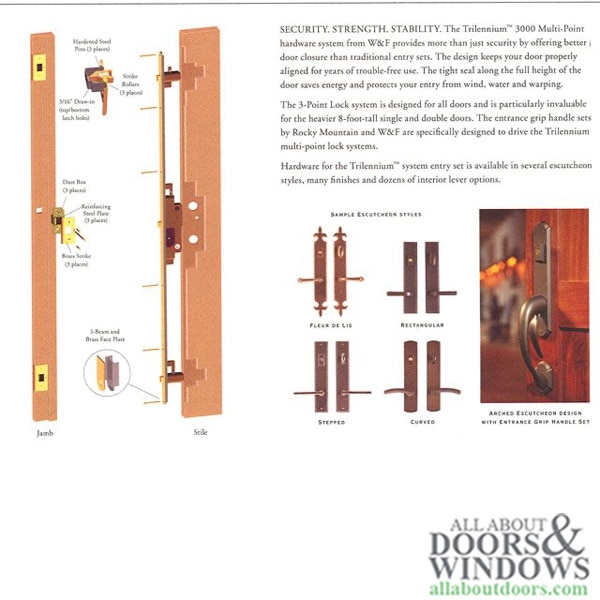

Trilennium 3000 series Multi-Point Lock with Latch Bolts
Standard Trilennium Cross Bore: 2-1/8 inch ( use Pinnacle, Eclipse & Grip Hardware)
Optional Crossbore: 1-11/16 ( use Europa, Horizon & Emtek hardware)

Lock Measurements:
Backset: 2-3/8 (60mm)
Faceplate Width: 1 inch (25.4mm)
Faceplate Length: 55-1/2 inch (1410mm) Radius ends
Faceplate Color: 10 Finishes
Deadbolt Throw: 15/16 inch
Top Lacthing Bolt: 23 inch
Bottom Latching Bolt: 24-1/4 inch
Spindle Diameter: 1/4 inch ( 7mm)

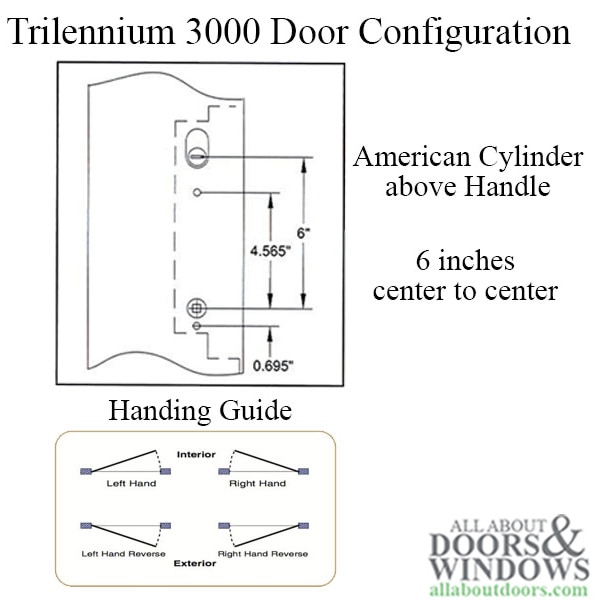

Cylinder Type: American with Flat tail piece, Not included
Country of Origin: Made in USA

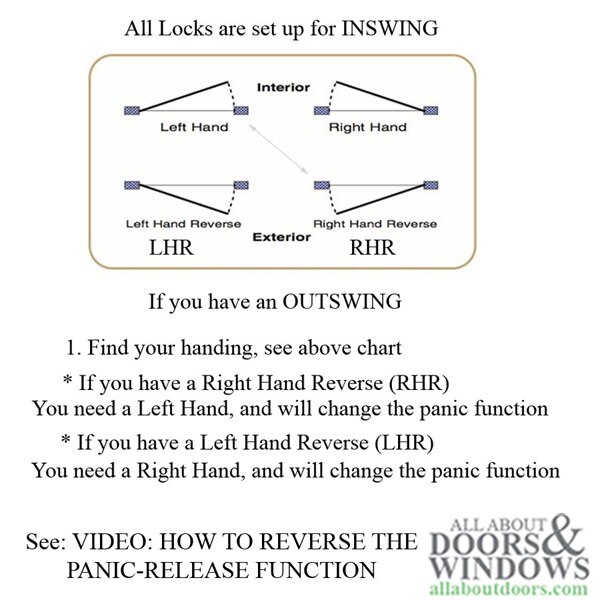

Handing: As viewed from outside
Handed: Yes, Set up for Left or Right Hand doors

The handle moves down only
To lock - Use key or thumb turn - Extends Latch to Deadbolt function
To unlock - Use Key Outside or Thumb Turn / Lever Inside
Panic Release: Yes, Pressing down on the inside handle will unlock

The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
