Tilt & Turn Dirigent-F Inside Handle, 7 x 38mm Spindle
Dirigent Tilt & Turn Inside Handle with 7 x 38 mm Spindle.
This Handle is designed for Wood, PVC and Aluminum windows and balcony doors.
Function: Inside Handle

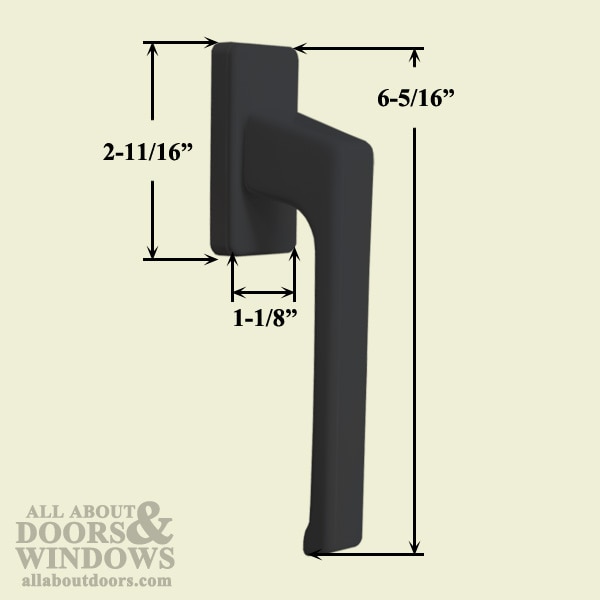

Base Width: 1-1/8 Inch (28mm)
Base Height: 2-11/16 Inch (68mm)

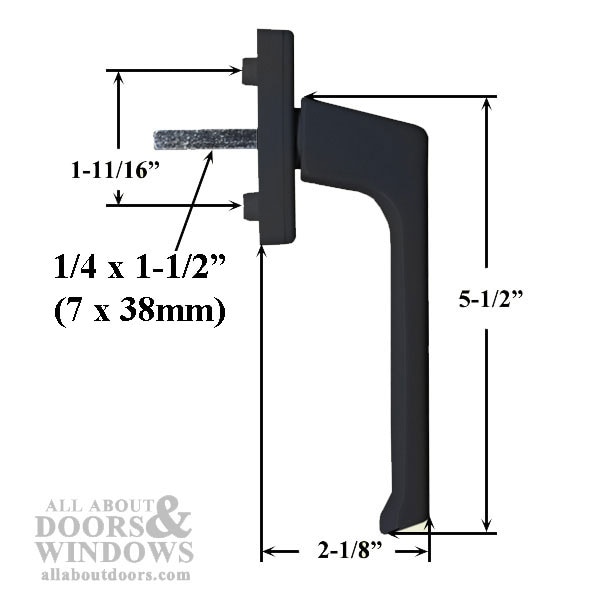

Screw Hole Center: 1-11/16 Inch (43mm)
Handle Length: 5-1/2 Inch (140mm)
Handle Projection: 2-1/8 Inch (54mm)
Overall Length: 6-5/16 Inch (160mm)
Spindle: 1/4 x 1-1/2 inches (7mmx38mm)
Handed: Non-Handed
Material: Cast Aluminum

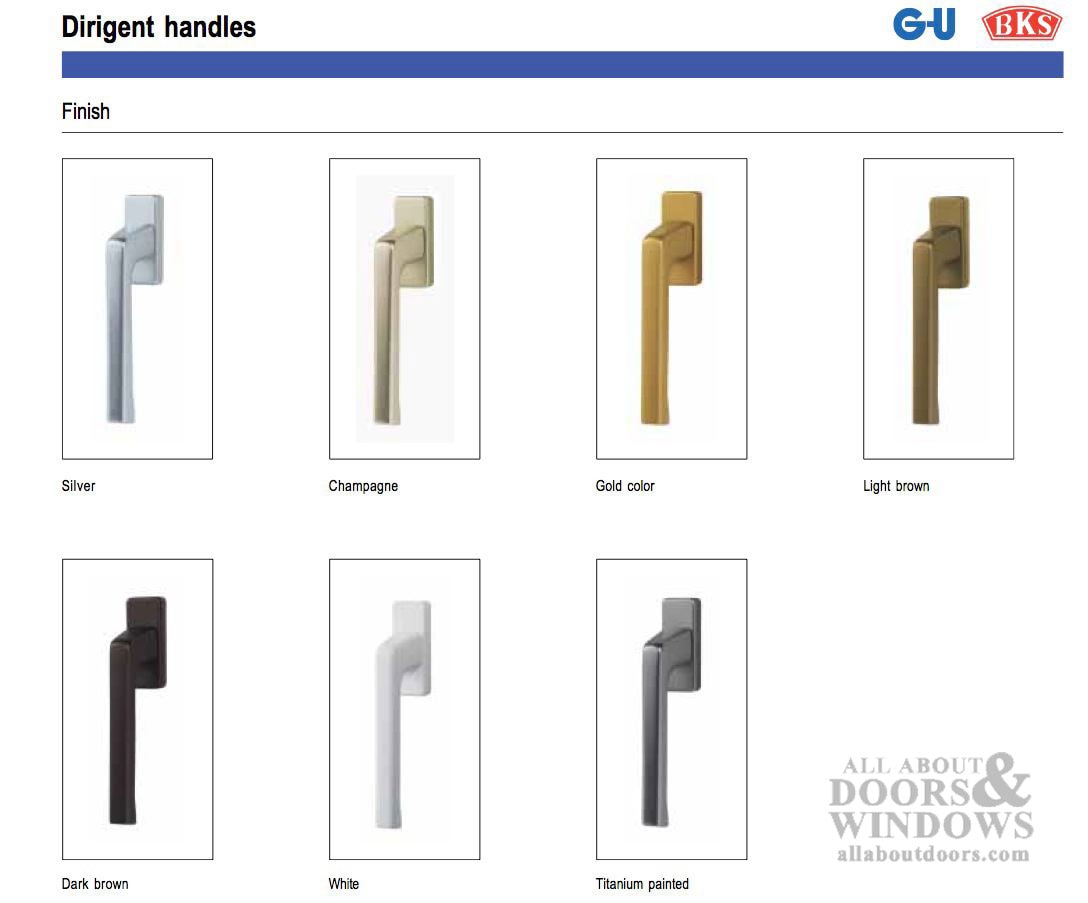

Color: 7 Assorted Finishes
Priced and Sold Each, No Screws
These are Non-Stock Items, Allow 2-3 weeks for delivery.
This handle comes with 3 different Spindle Lengths.
7 x 29mm (1/4 x 1.141 inches )
7 x 33mm (1/4 x 1.299 inches )
7 x 38mm (1/4 x 1.496 inches )
This Handle is designed for Wood, PVC and Aluminum windows and balcony doors.
Function: Inside Handle
Base Width: 1-1/8 Inch (28mm)
Base Height: 2-11/16 Inch (68mm)
Screw Hole Center: 1-11/16 Inch (43mm)
Handle Length: 5-1/2 Inch (140mm)
Handle Projection: 2-1/8 Inch (54mm)
Overall Length: 6-5/16 Inch (160mm)
Spindle: 1/4 x 1-1/2 inches (7mmx38mm)
Handed: Non-Handed
Material: Cast Aluminum
Color: 7 Assorted Finishes
Priced and Sold Each, No Screws
These are Non-Stock Items, Allow 2-3 weeks for delivery.
This handle comes with 3 different Spindle Lengths.
7 x 29mm (1/4 x 1.141 inches )
7 x 33mm (1/4 x 1.299 inches )
7 x 38mm (1/4 x 1.496 inches )
