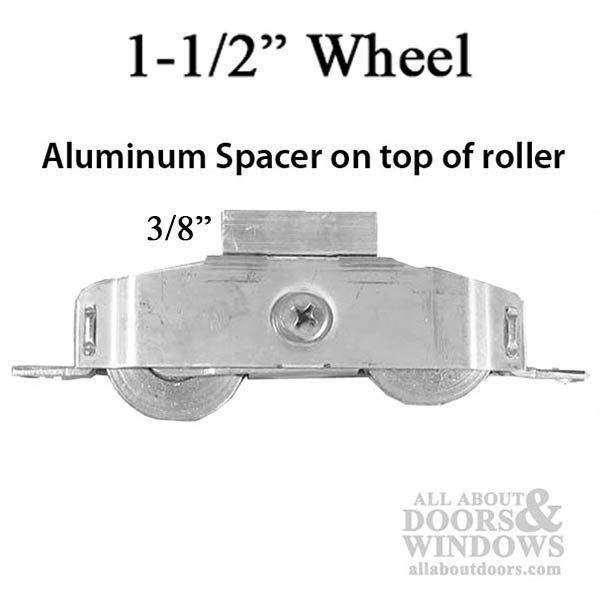

Tandem 1-1/2" Wheel Roller Assembly, Aluminum support bracket
Tandem stainless steel roller assembly with Aluminum support bracket for vinyl sliding doors.

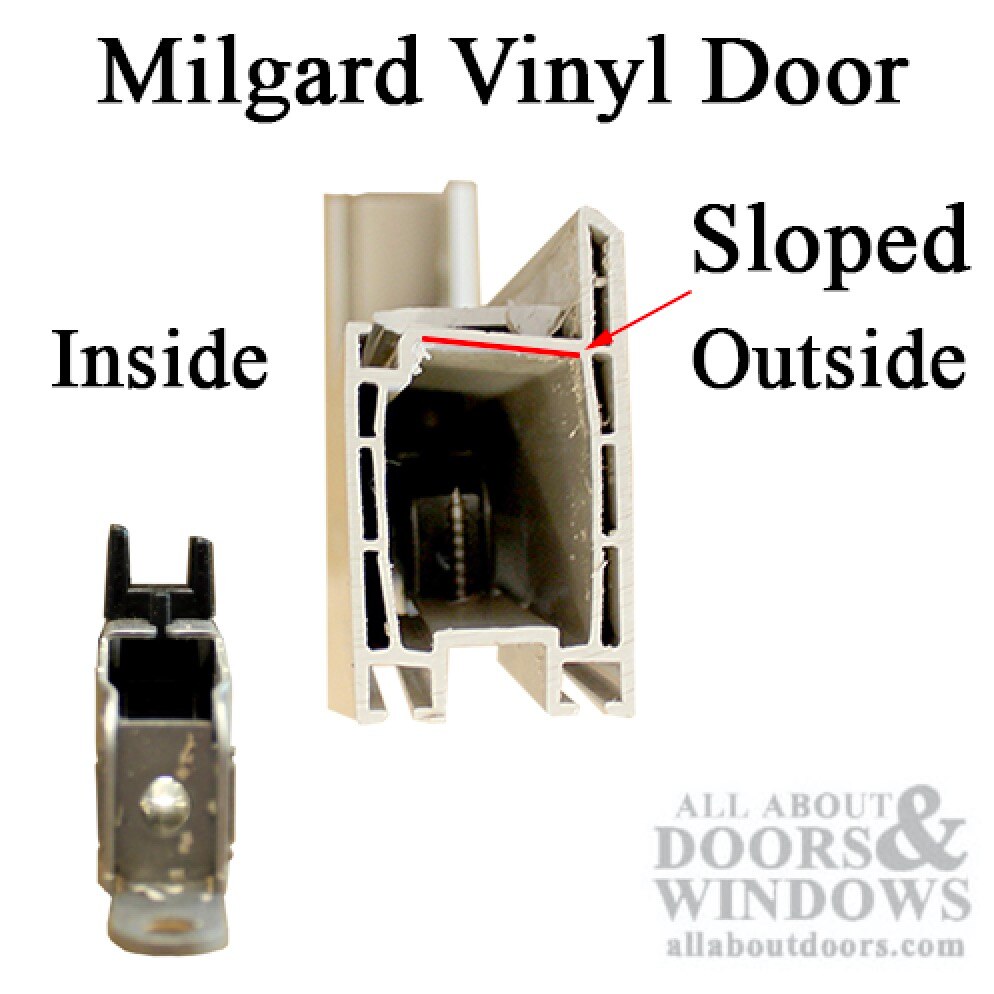

Used by Milgard and others.
Replace with 13252
Roller Type: Tandem w/ Support Bracket
Roller Diameter: 1-1/2 inch
U-shaped spacer height: 3/8 inch tall, one side, 7/16 inch wide (mounted on top).
U-shaped spacer length: 1-5/8 inch
Handed: Yes, One side of the Support is longer than the other
Screw hole spacing: 5-3/4 inch
Note: The spacer provides support for the weight of the door and spreads the weight from the screws to the door panel. The spacer is necessary to prevent damage to door panel.
Priced and sold each.

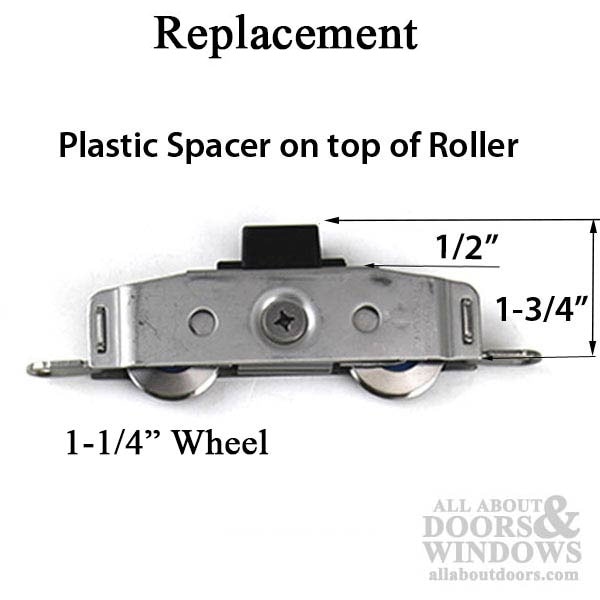

Note: Replaced with new design with plastic support bracket 13252 with Plastic Support
