Sweep Latch 2-1/4" screw holes, Short Latch Throw, Composite (plastic)
Single & Double Hung Window Composite sash lock with offset screws holes spaced 2-1/4 inches and 3/8 back from front.
A composite is a material made from two or more different materials that, when combined, are stronger than those individual materials by themselves.
Application: Single and Double Hung Sliding windows

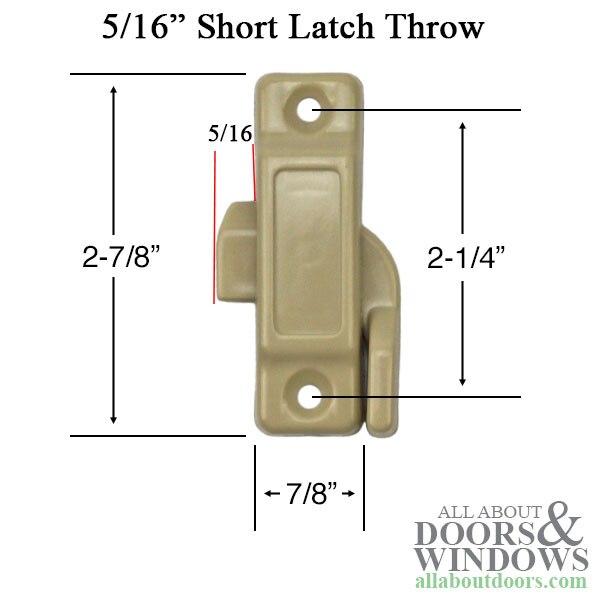

Screw Holes: 2-1/4 inch (57mm) 2.25
Screw Hole Set Back: 7/16 inch (10.92mm) 0.43

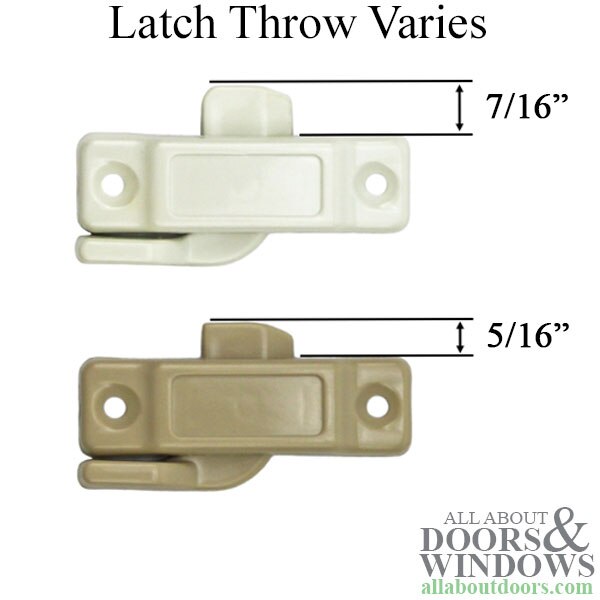

Beveled Latch Throw: 5/16 inch (7.87mm) .31
Material: Composite ( Polymer Plastic matrix )

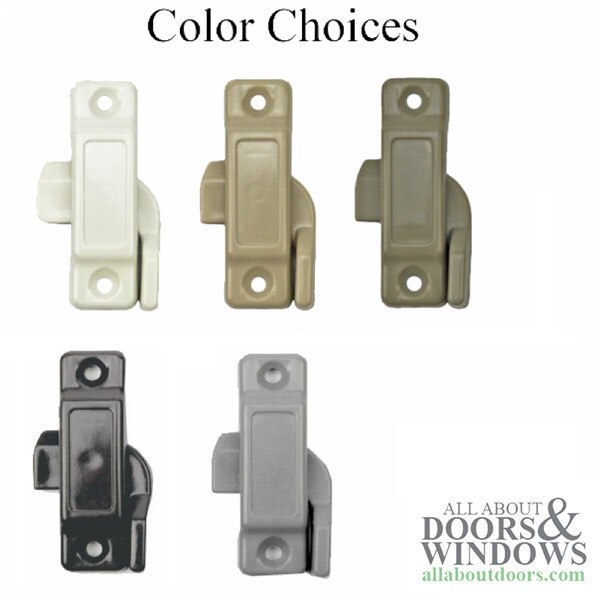

Color: White, Clay, Gray, Bronze, Beige (almond)
NOTE: V-31621 & V-31721 are almost the same, very minor differences on Screw set back and latch bevel
A composite is a material made from two or more different materials that, when combined, are stronger than those individual materials by themselves.
Application: Single and Double Hung Sliding windows
Screw Holes: 2-1/4 inch (57mm) 2.25
Screw Hole Set Back: 7/16 inch (10.92mm) 0.43
Beveled Latch Throw: 5/16 inch (7.87mm) .31
Material: Composite ( Polymer Plastic matrix )
Color: White, Clay, Gray, Bronze, Beige (almond)
NOTE: V-31621 & V-31721 are almost the same, very minor differences on Screw set back and latch bevel
