Sweep Latch 2-1/4" screw holes, Long Latch Throw, Composite (plastic)
Double Hung Window Composite sash lock with offset screws holes spaced 2-1/4 inches and 3/8 back from front.
A composite is a material made from two or more different materials that, when combined, are stronger than those individual materials by themselves.
Application: Single and Double Hung Sliding windows

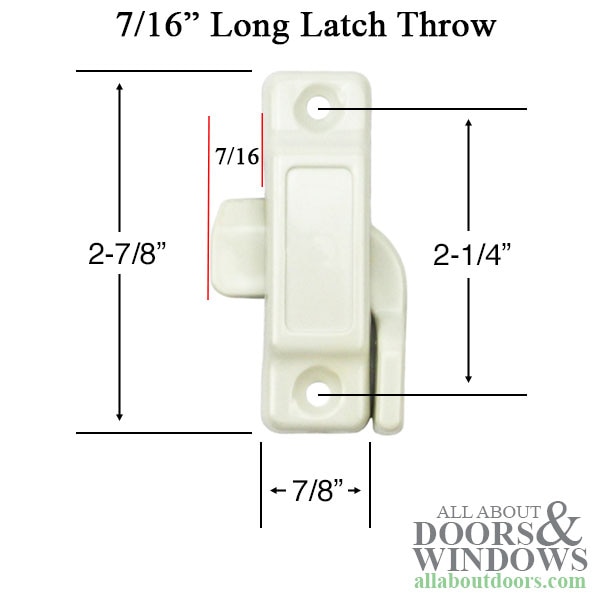

Screw Holes: 2-1/4 inch (57mm) 2.25
Screw Hole Set Back: 25/64 inch (9.9mm) 0.39

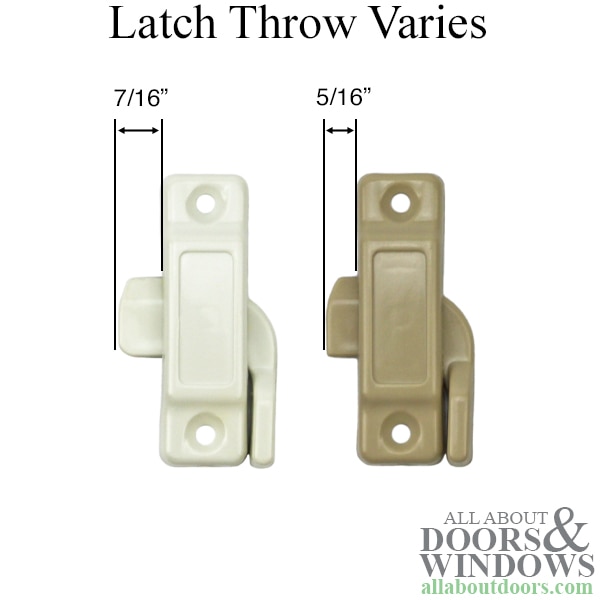

Beveled Latch Throw: 13/32 inch (10.41mm) .41
Material: Composite ( Polymer Plastic matrix )

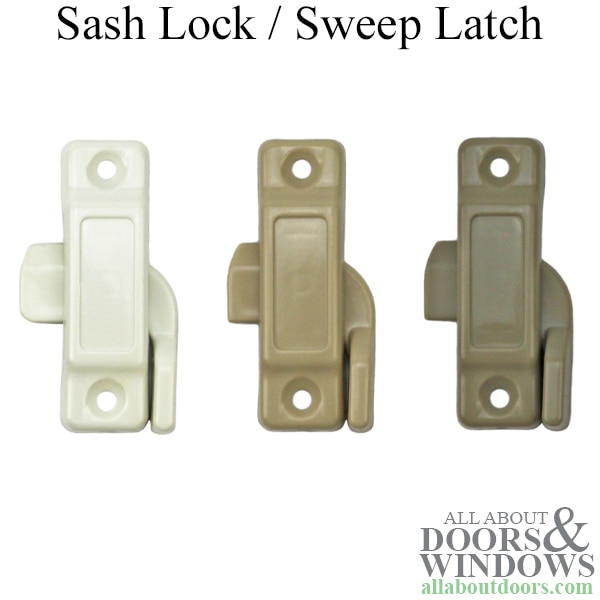

Color: White, Clay, Beige (almond)
NOTE: V-31621 & V-31721 are almost the same, very minor differences on Screw set back and latch bevel
