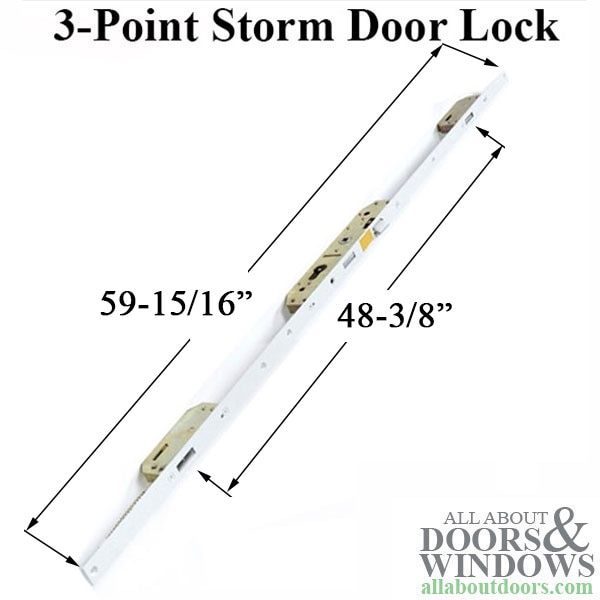

Storm Door Multipoint Lock (MPL), 2 Hooks and Deadbolt, RH - White

Part Number: 42539
Price: $97.63
Andersen / Emco Storm Door Multipoint Lock (MPL), 2 Hooks and Deadbolt, RH- White

Andersen / Emco 4000 series storm door with multipoint lock, 1 or 3 locking points
Can be used as single point lock, deadbolt at handle only or a 3-point lock using upper and lower deadbolts

Backset: 1-1/16 inch (27mm) 1.063
Deadbolt Throw: 3/8 inch (10mm)
Faceplate Width: 13/16 inch (21mm) .82667
Spindle Hub: 5/16 inch (8mm)
Faceplate Length: 59-15/16 inch
Faceplate Color: White ( white or gray)
Handed: Yes, Left Hand or Right Hand from Factory*
Handle to Cylinder PZ: 2-1/2 inch (63mm)
Deadbolt Spread: 48-3/8 inches top to bottom deadbolt

*NOTE: Handing can be changed by loosening the faceplate screws and rotating the spring latch
