Spring Hinge 4.5 x 4.5 x Square Corners, UL Listed, Deltana Single Action

Part Number: 363621
Price:$25.30 to $29.22

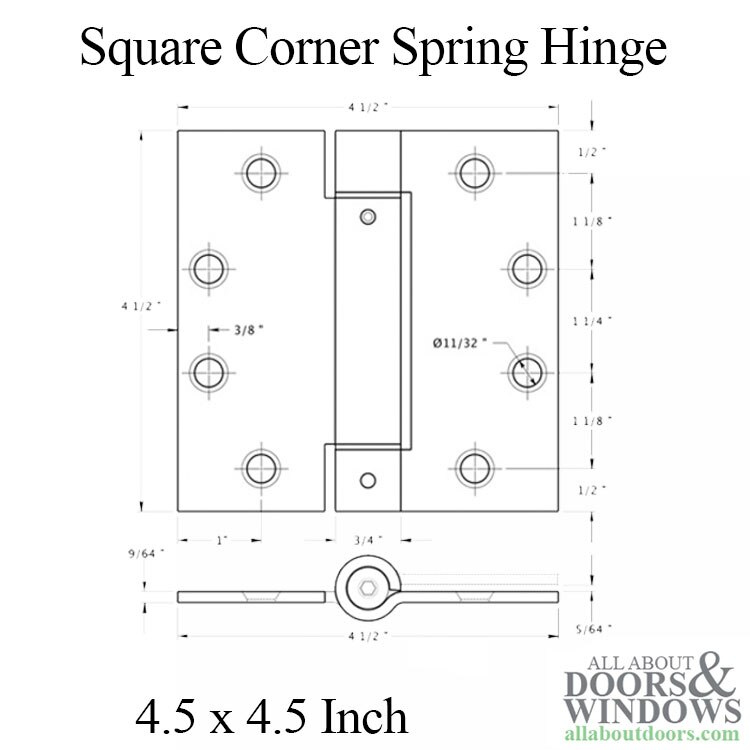

4-1/2 inch x 4-1/2 inch UL Listed square spring hinge for standard commercial hinge pattern

Application: Commercial doors
Hinge Pattern: Template
Type: Spring loaded, self closing

Size - 4.5 X 4.5 inch (114mm x 114mm)
Base Metal - Steel
Hinge Corners - Square
Thickness - .0134 inch (3.4mm)
Wood Screw: #12 x 1-1/4
Machine Screw: #12 x 1/2
Packaged: Each
Priced and sold Each, some hinges are boxed in each, 2's or 3's - Ours are sold Each

Color / Finish Options:
Polished Brass
Antique Brass
Oil Rubbed Bronze
Satin Nickel

Note: Spring hinges work best when applied in 2's or 3's. This allows for Maximum versatility when adjusting hinges for wind conditions, weather stripping or air pressure on one side of the door.
