Siegenia Lift and Slide 17mm Patio Door Hardware

Part Number: SIGear4
Price: $195.00
Siegenia Lift and Slide 17mm Patio Door Hardware, 2100mm Multipoint lock " SI " Logo
This is the drive gear only with 2 rollers, does not include additional hardware

KF-3 SI-Line TBT Drive Gear Gr4TL 17mm 2/R

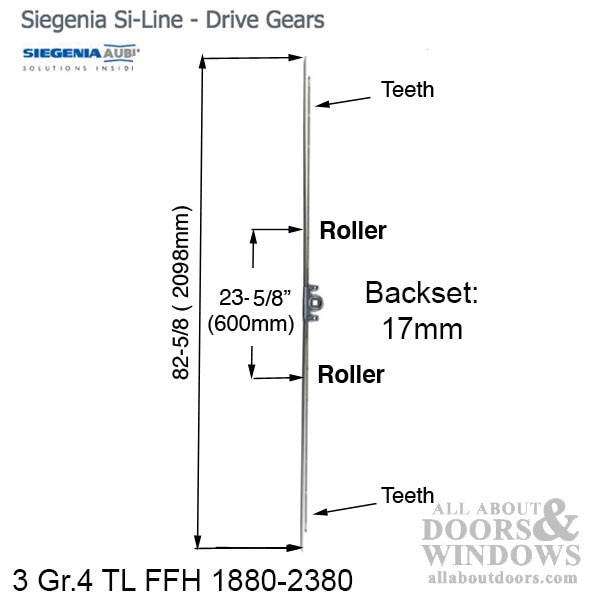

Backset: 21/32 inches (17mm)
Length: 82-5/8 inches (2100mm)
Rollers: Yes, 2
Distance between rollers: 23-5/8 inches ( 600mm)
Handle to Top roller: 11-13/16 inch (300mm)
Handle to Bottom roller: 11-13/16 inch (300mm)
