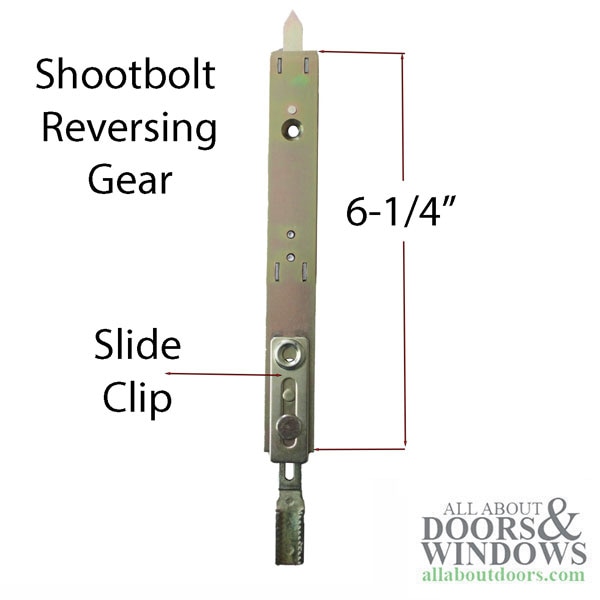

Shootbolt Reversing Gear Extension Tip for Multipoint lock - YDI

Part Number: G-17567-SB
Price: $14.95

Upper Shootbolt Extension Tip for Multipoint lock. An after market G-U replacement for Superior Door and others with the old style Yellow Dichromate Finish.

Application: Active or Inactive Door
Faceplate Width: 13/16 inch (20mm)
Faceplate Length: 6-1/4 inch
Color: Yellow Dichromate (YDI)
Markings on some Shootbolts E16744

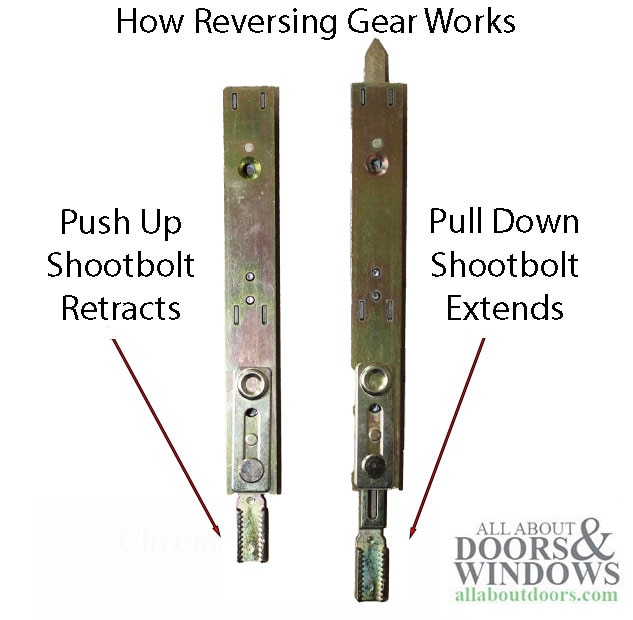

Note: A reversing gear extends the shootbolt tip when the bottom receptacle with serrated teeth is pulled down.

Note: This Shootbolt Tip Extension should replace any old style G-U Multipoint locks.
