Secury Automatic Multipoint Lock, Key Operated, 45/92 Gear Driven

GU Secury Automatic European Profile cylinder key operated, gear driven lock.

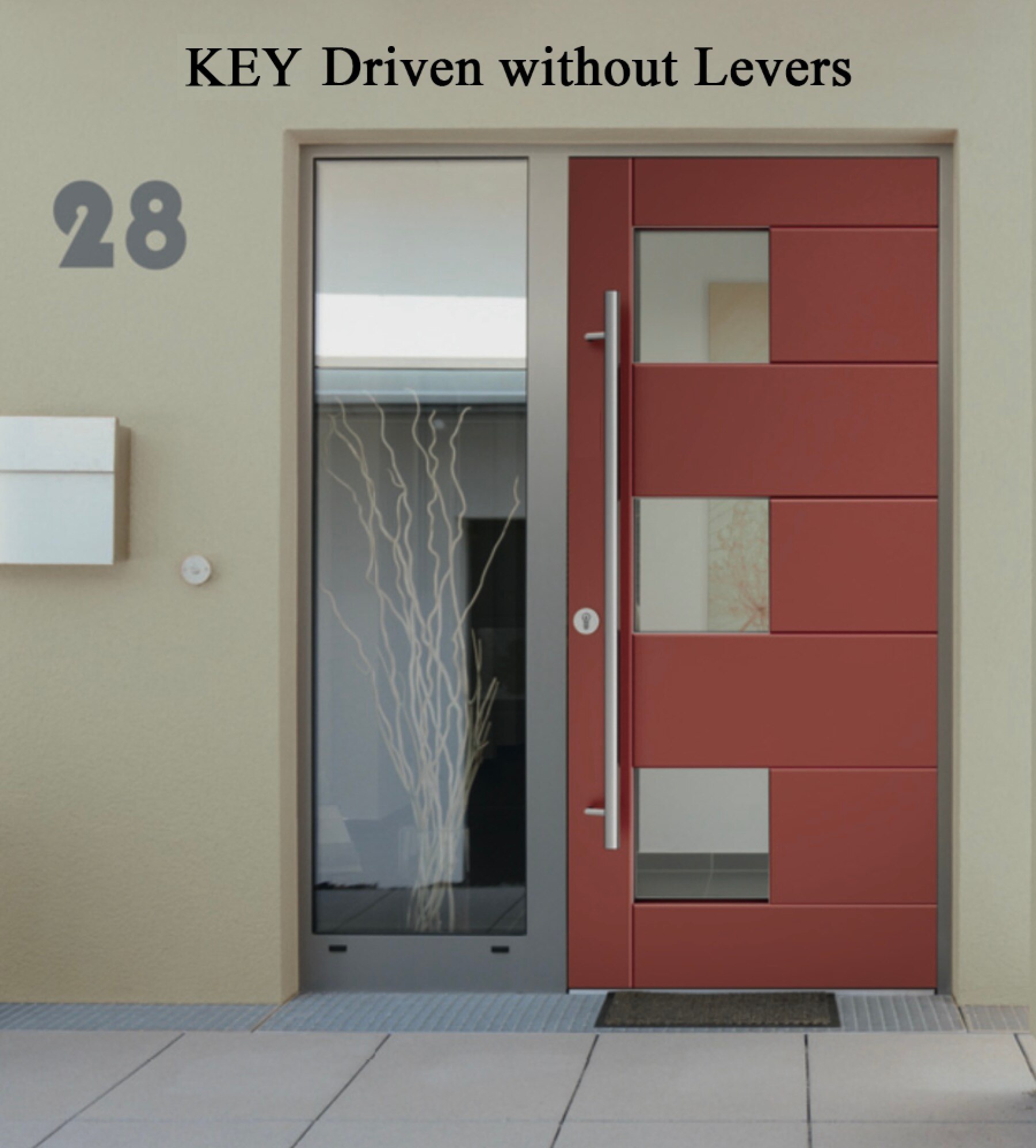

Use your key or thumb turn to lock and unlock door, Levers are not needed.

Used for a clean modern looking door, Optional Push / Pull bars and other accessories are available

The Secury Automatic would be an excellent choice because there is no second operation to engage the multi-points to keep the door in alignment.   Every time the door closes the latches extend without lifting the handle.

Faceplate width: 5/8 inch (16mm)

Backset: 1-3/4 inch  (45mm)

Handle Height:  41.338 inch  (1050mm) Croppable

Deadbolt Throw: 3/4 inch (20mm)

Spindle Hub: 5/16 inch (8mm)

Cylinder to Spindle: 3-5/8 inch (92mm)

Overall Length: Fits 8 foot Door

Bottom Latchbolt Position:

Upper Latchbolt Position:

Material: 304 Stainless Steel

Lock Operation:

Simply close the door and all 3 latches extend  3/4 inch (20mm) to secure the door in the locked position.

Open the door with exterior key or interior thumb turn.

Turning Key or thumb turn 180° will retract deadbolt, and additional 180° will retract latches.

Related Hardware:  Push - Pull Handles

K-C0340-08-P-8B Double Pull bars, Round, Length 31.496 inch (800mm)

K-C0340-12-P-8B Double Pull bars, Round, Length 47.244 inch (1200mm)

K-C0340-18-P-8B Double Pull bars, Round, Length 70.866 inch ( 1800mm)

K-C0345-08-P-8B Double Pull bars, Round 45° Offset 800mm

K-C0345-12-P-8B Double Pull bars, Round 45° Offset 1200mm

K-C0345-18-P-8B Double Pull bars, Round 45° Offset 1800mm

K-C0350-12-P-8B Double Pull bars, Rectangular 1200mm

6-C0531-00-0-8B Interior Caps for Pull Bars (1)

K-C0960-00-0-8B Support Plates for Pull Bars (4)
