Security Door & Window - Miami, Fl., Single Door - Discontinued
This Hardware is Discontinued and is no longer available. Replacement Options Available
Security Door and Window, Miami, Florida is out of business
Manufactured around 1990's.
Original Hardware Specs:

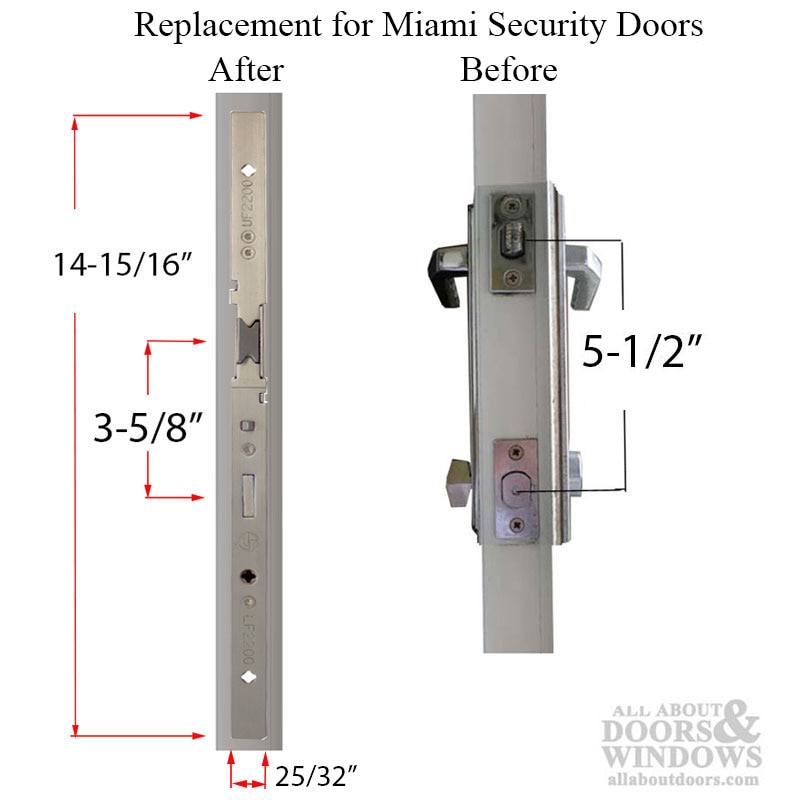

Hole Spacing: 5-1/2 inches (between spring and deadbolt latch)
Backset: 1-3/4 inches.
Old Lock used a standard 5 pin tumbler Schlage SC1 Keyway.
Lock and handle set can be replaced with modifications.

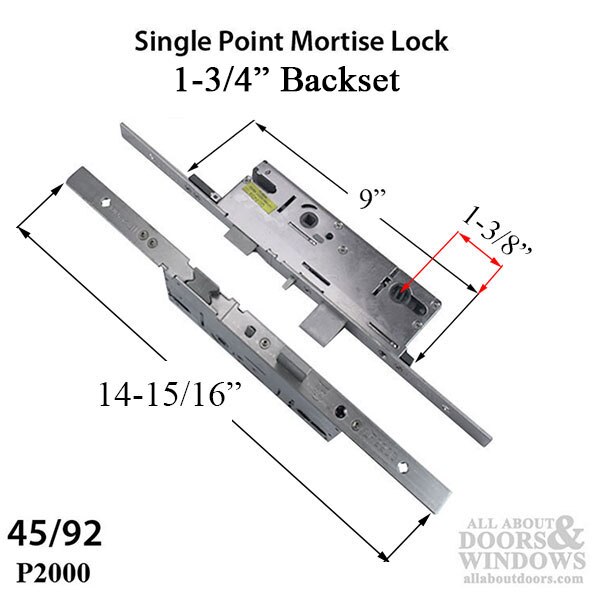

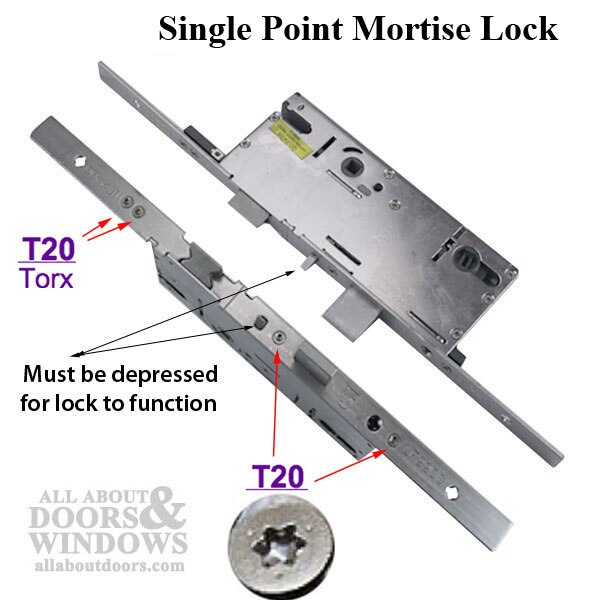

Requires changing to a Single Point Mortise lock

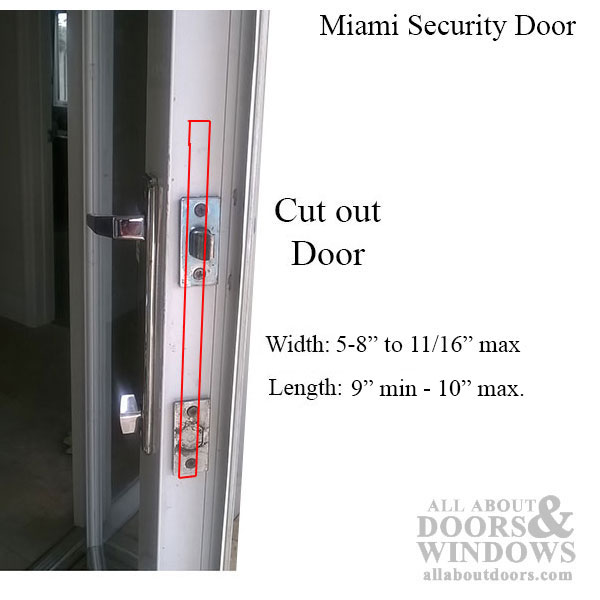

1. Cutting out a 5/8" by 9-1/4" hole in door edge for mortise lock with 1-3/4 inch backset

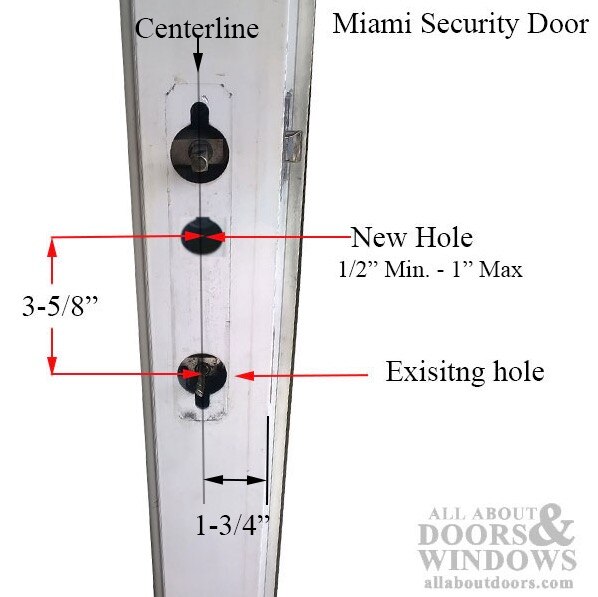

2. Drilling holes for new handle set trim, 3-5/8 inch centers

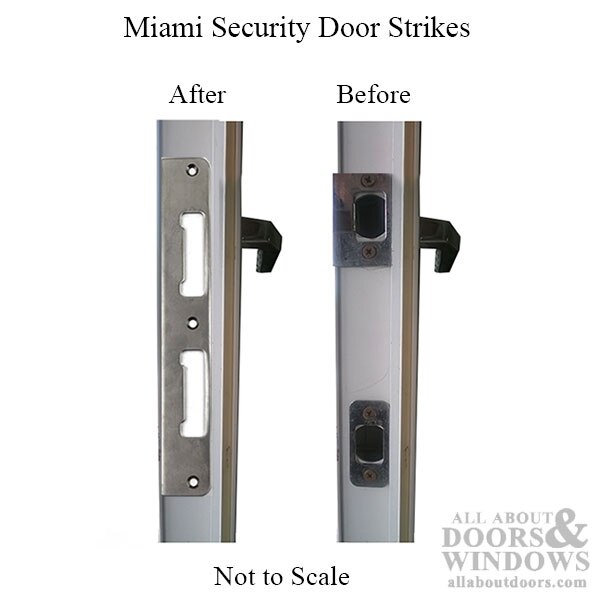

3. Changing strike plate on door jamb

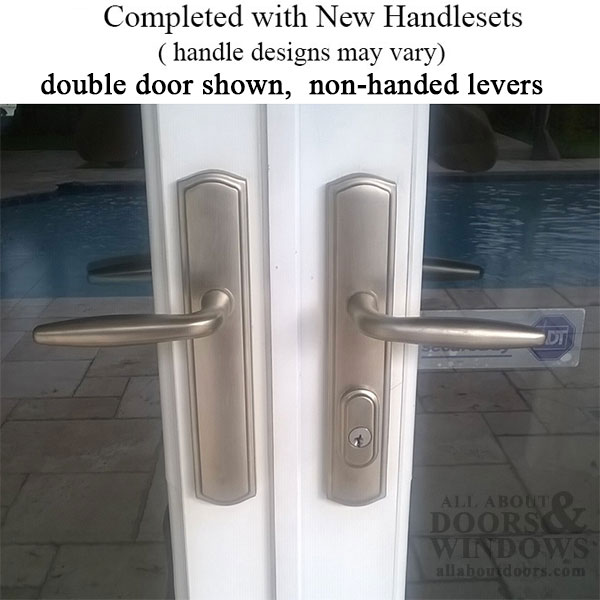

Replacement Hardware for single doors shown below in related items
Detailed instructions available on request
