Sash Lock / Sweep Latch 2-1/4 x 25/64 screw holes Composite

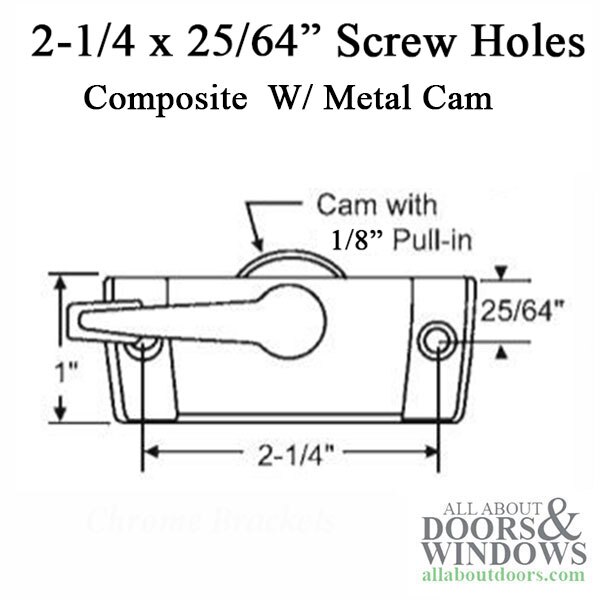

Composite sash lock with offset screws holes spaced at 2-1/4 inch and 25/64 inch back from front.
Screw Holes: 2-1/4 inch (57mm) 2.25
Screw Hole Set Back: 25/64 inch (9.92mm) 0.390
Cam Throw: 1/4 inch (6.197mm) .244
Cam Pull in: 1/8 inch
Material: Composite ( Polymer Plastic matrix ) Zinc Cam
Color: Clay
NOTE: A composite is a material made from two or more different materials that, when combined, are stronger than those individual materials by themselves.
