Roto Split Arm Casement Window Operators

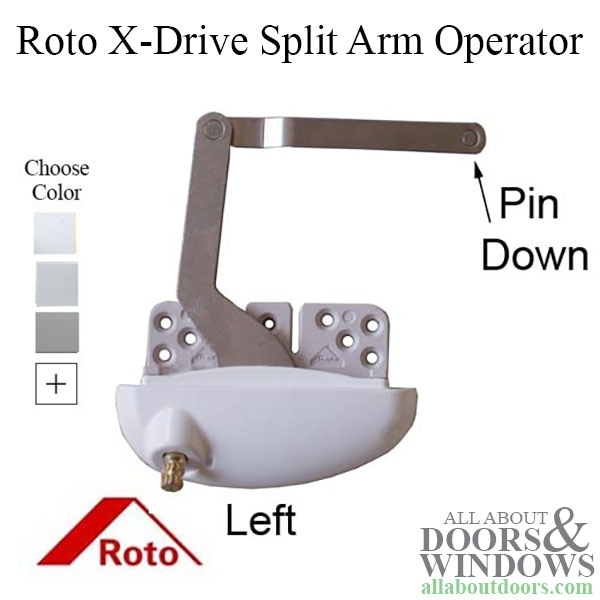

Roto X Drive Split Arm for Wood Window Application,

Application: Wood Windows, Notched Base

Brand: Roto Hardware

Base: 1/8 inch Thin base, 9/16 Overall housing thickness

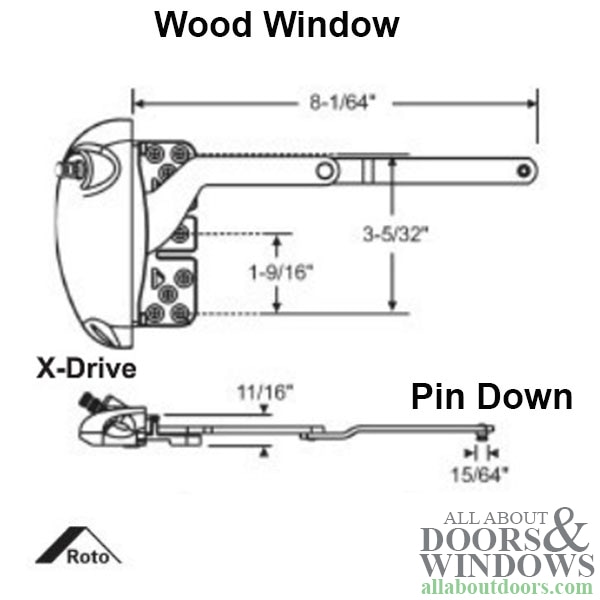

Arm Length: 8-1/64" from housing to middle of arm

Pin Position: DOWN

Link Offset: Yes

Handed: Yes, Left and right hand as shown

Colors/Finish: G1 Off White

Optional Colors: White G2, Off White G1, Blue White, Almond

Roto Operator Note:

The X-Drive and Pro Drive are the same operator that uses a different crank handle.

The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.

The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
