Roto 8-1/64" Split Arm, X-Drive, RH Wood Window Application - White

Roto X Drive Split Arm for Wood Window Application.

Brand: Roto Hardware
Application: Wood Windows

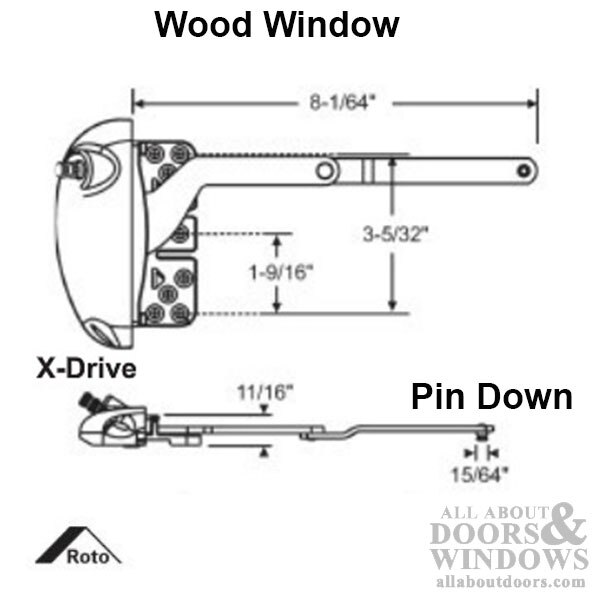

Arm Length: 8-1/64" from housing to middle of arm
Pin Position: DOWN
Link Offset: Yes
Stack: 11/16" for wood windows
(9/16" stack for vinyl windows, see # 572028)
Handed: Yes, Left and right handed as shown
Colors/Finish: White
Optional Colors: Almond, Blue White, Dark Brown, Earth Brown, Oil Rubbed Bronze

Note:

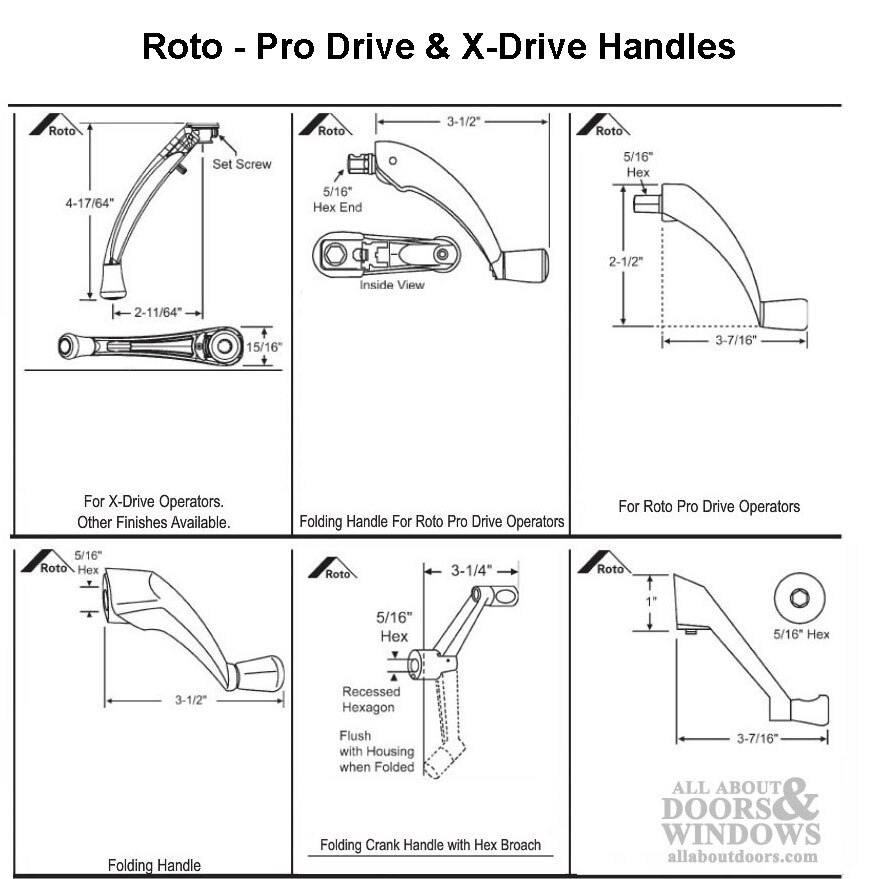

The X-Drive and Pro Drive are the same operator that uses a different crank handle.

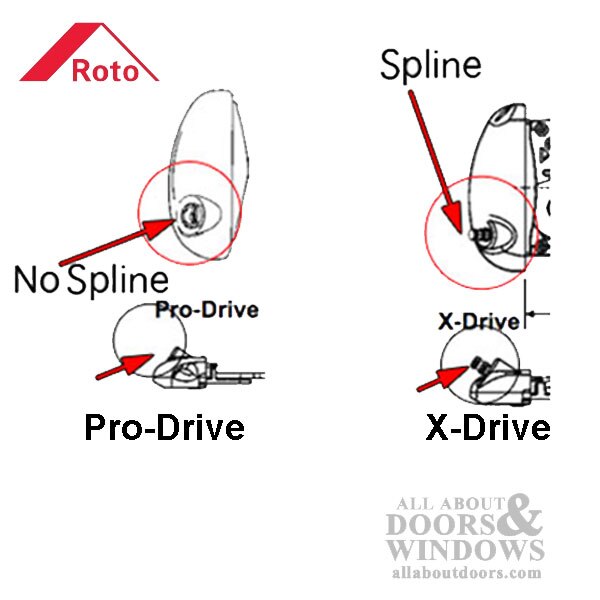

The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator.
The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
