Roller Tilt, Constant Force Balance, Single Coil - Choose Size

Part Number: 534301
Price:$6.41 to $19.95

Roller Tilt, Constant Force Balance, Single Coil with Blue Cam

Note: Blue cam used U-Shaped stamped steel pivot bar. The Zinc pivot bar will not work.

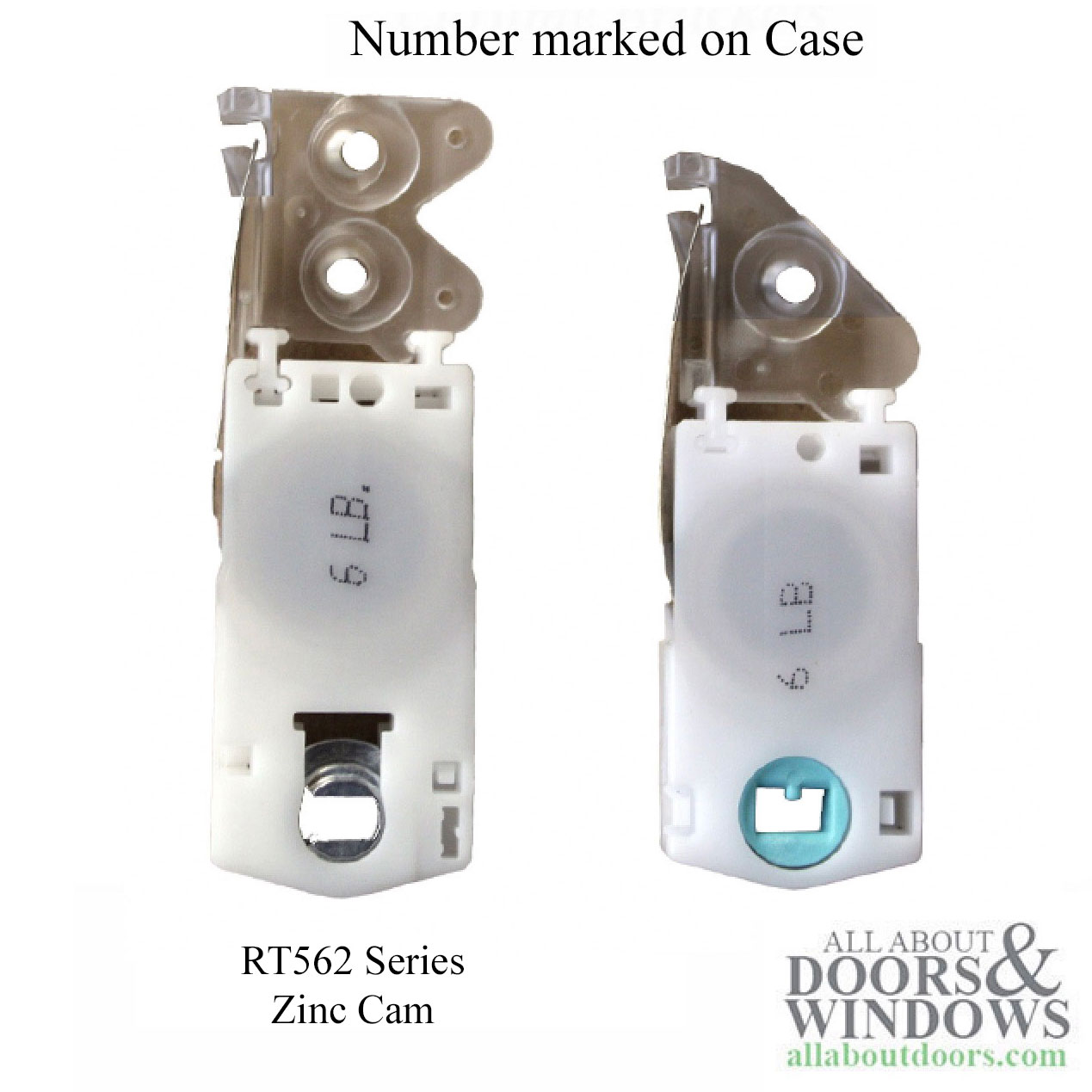

The new style RT562 with Zinc cam works with steel or zinc pivot bars.


Standard Bearing / Cam - Constant Force Balance System for double hung vinyl window.
Each 1/2 inch wide Coil spring has a number imprinted on the housing that determines the strength of the balance.
They may have one or more coils and the coils may have different numbers on each coil if used in Doubles or Triples
Number marked on Housing: 3,4,5,6,7,8,9 ( Select by Number)

Housing Dimensions:
Width: 1-1/4 inches Wide
Height: 2-1/2 Inches Tall
Thickness: 9/16 Thick
Number stamped on Housing: Select from LIst
Best if Replaced in Pairs.

NOTE:

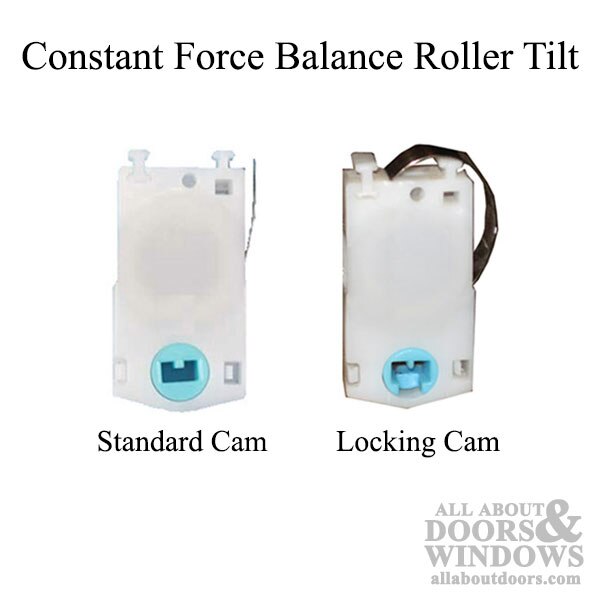

The Pivot Cam / Locking Collars are available in two types - See additional pictures

Priced and sold each.
