Pella PCS Exterior handle, Non-handed - White
PCS Exterior handle, can be used on LH or RH sliding door
Used on Pella ProLine sliding doors manufactured from 1991 to August 1997
Used with interior handles 9014003 and 9014004

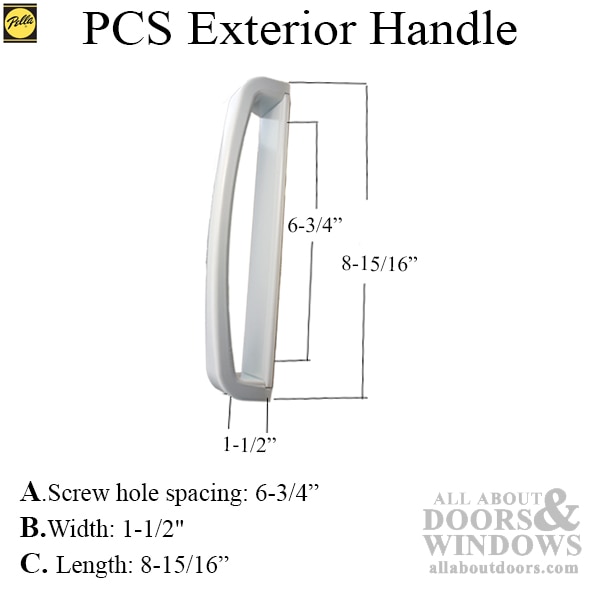

Screw hole spacing: 6-3/4 inches
Handle width: 1-1/2"
Handle length: 8-15/16 inches
Markings: Rolscreen R.D. 19 91, 40643 57 2
NOTE: the outside handle with Key cylinder has been discontinued and not longer available.
Pella Replacement Options: Require modification
This trim will cover the old holes in the door, will have to drill new holes for screws and there will be a 5/16 inch strip showing from the original handle set trim that will need to be painted or stained.
147141 - Non-Keyed
147142 - Keyed
