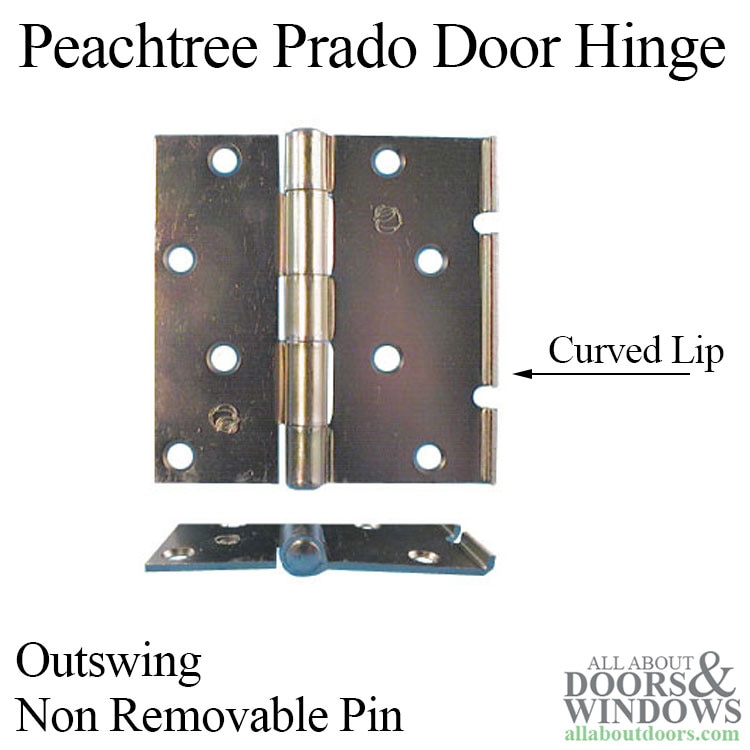

Peachtree Prado Door Hinge 3-15/16" x 4" Non Removable Pin
Peachtree replacement hinge with non-removable pin for Prado swinging patio door.
Hinge Size: : 3-15/16 x 4 inch ( total width - height)
Door side leaf: 1-3/4" with square corners
Jamb side leaf: 2-3/16" with curved lip
Type: Plain Bearing
Corner: Square corner with Lip;
Base Material: Steel
Color/Finish Options:
Brass Type (YDI)
Satin Nickel Type (silver steel)
Oil Rubbed Bronze (painted)
White (painted)
The hinged patio swing set has 2 screws going through the hinge into the astragal outside weather strip astragal.
These screws hold astragal to stationary panel.
Priced and sold each, screws NOT included (#10 Flat Phillips 1")
