20mm Winkhaus OML, 6092 Key Above Handle, 2 Hook Version - Discontinued

Part Number: 499116399
Price: See Description

This product has been discontinued and is no longer available

DISCONTINUED One Motion Lock
Winkhaus One Motion Lock (OML) with automatic retraction of hooks and deadbolt when handle is depressed.
REPLACEMENT AVAILABLE - FILL OUT WORKSHEET -
CHECK INFORMATION BELOW TO VERIFY THIS IS YOUR DOOR

Markings on Lock Case: TTX 6092

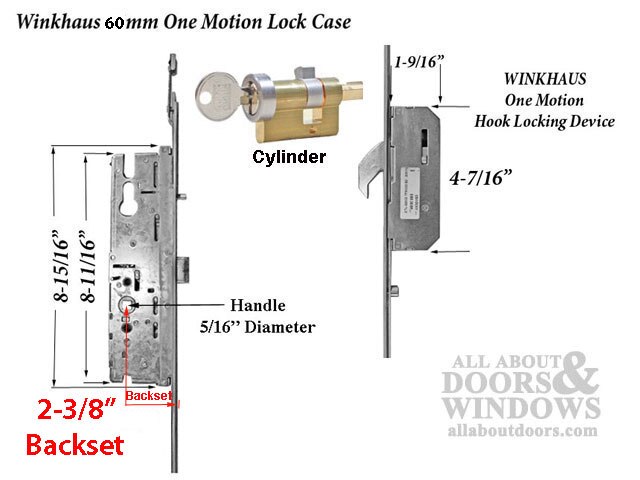

Features - Dimensions:
Faceplate Width: 13/16 inch ( 20mm)
Backset: 2-3/8 inch ( 60mm)
Handle height: 36 inch
Handle / Cylinder PZ: 3-5/8 inches ( 92mm)
Key Position: Key Above Handle
Key Cylinder: Special Design, Schlage keyway SC1, 5 Pin
Door Companies: Manco, Milgard Fiberglass Door, and others
Locking devices: Tongue Version Lock (7/8 in Projection)
Overall Door Panel Height: 81-1/2 inches (2070mm)
Top Hook position: 27.6 inches (702mm)
Bottom Hook Position: 27.2 inches (691mm)
Faceplate Length: 81-1/2 inch ( same as door panel - No Sweep )

Replacement NOTE: the faceplate is croppable and fits doors 76.7 in - 85.7 in ( 1947-2177mm)
The replacement will be Key Below Handle, for most applications
