60.5/31.5 New Style HOPPE Non-Logo Active 90° Keyed Profile Cylinder Lock with Crescent Knob

Part Number: 416031010
Price:$117.02 to $160.72

New style 90° HOPPE keyed profile cylinder with crescent knob.

Used on doors that are 2-1/8 to 3 inches thick.

The new style 90° allows the homeowner to look at the thumb turn and know if door is locked or unlocked.

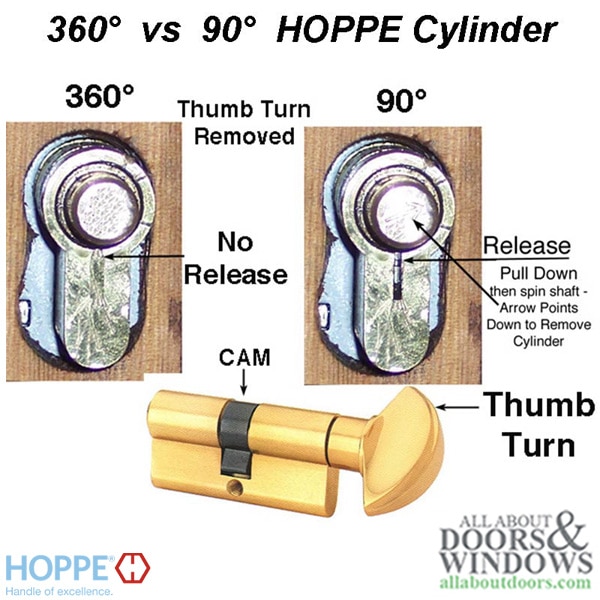

This cylinder can be converted to a 360 degree cylinder.

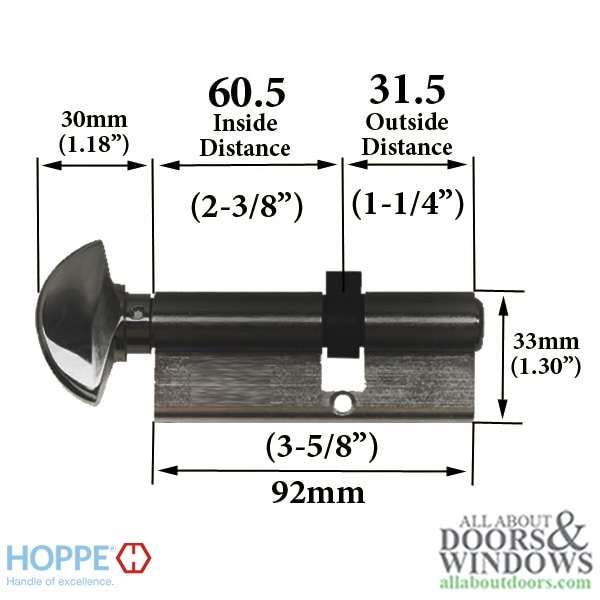

Measurements:
Inside Distance = 2-3/8 inch (60.5 mm)
Outside Distance = 1-1/4 inch (31.5 mm)
Overall (inside + outside) = 3-5/8 inches (92 mm)

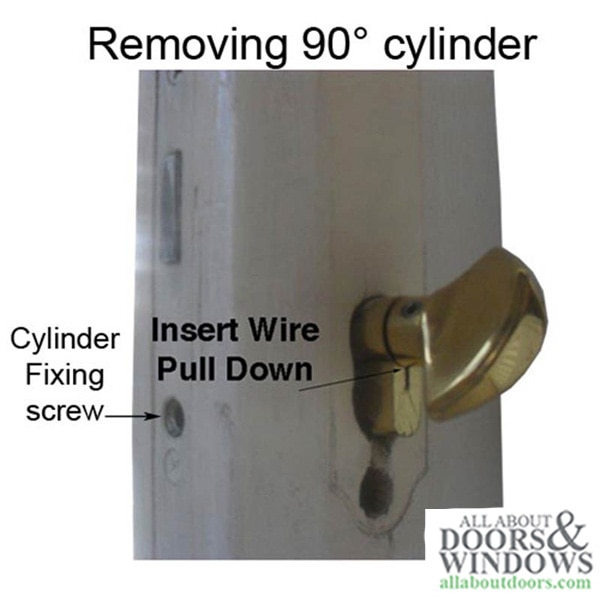

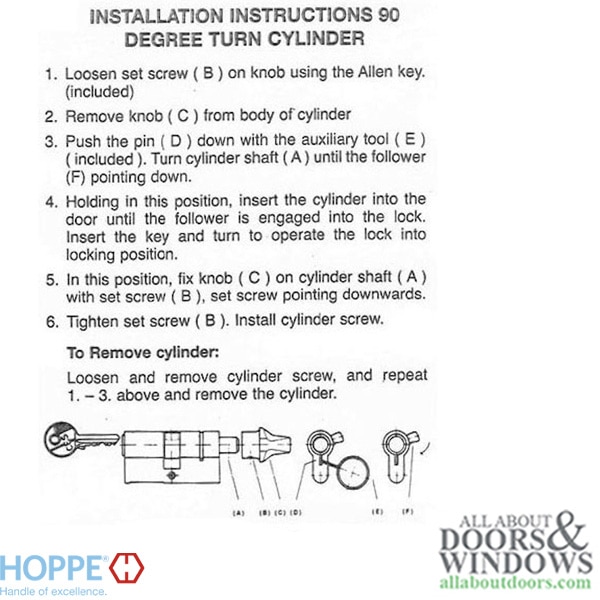

Installation Instructions:
1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

Color/Finish Options:
Rustic Umber (F8709)
Oil Rubbed Brass (F79)

Resista no-tarnish finishes:
Polished Brass (F77-R)
Brushed Chrome (F41-R)
Satin Nickel (F42-R)

Note: Some colors may be special order, resulting in longer shipping times.

Article:
HOPPE Cylinder Installation and Rekeying
