Monobloc Gear Box for Tilt & Turn Window Multipoint Lock, Choose Backset

ARTech Monobloc Gear Box with 16mm Faceplate
Manufactured by AGB
Used on Tilt & Turn Windows with Multipoint Locks

Backset Measurements

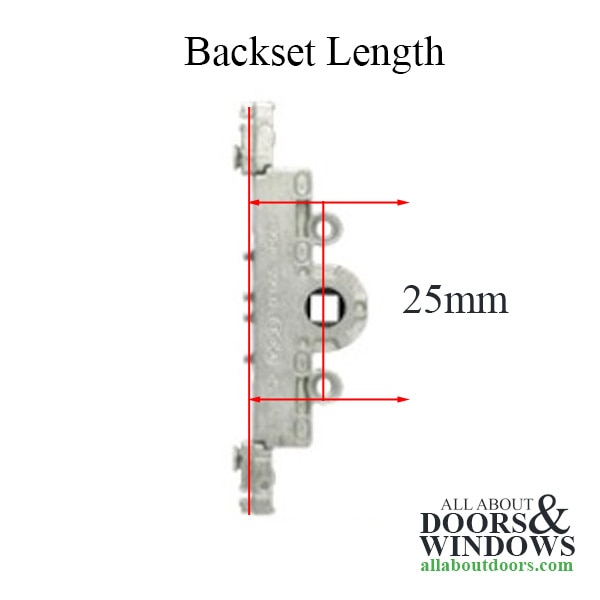

The backset it measured from the front of the faceplate to the center of the spindle hole. (see images)

Available Backsets:
15mm (19/32")
25mm (1")
30mm (1-3/16")
35mm (1-3/8")
40mm (1-9/16")
45mm (1-¾")
50mm (1-31/62")

NOTE:

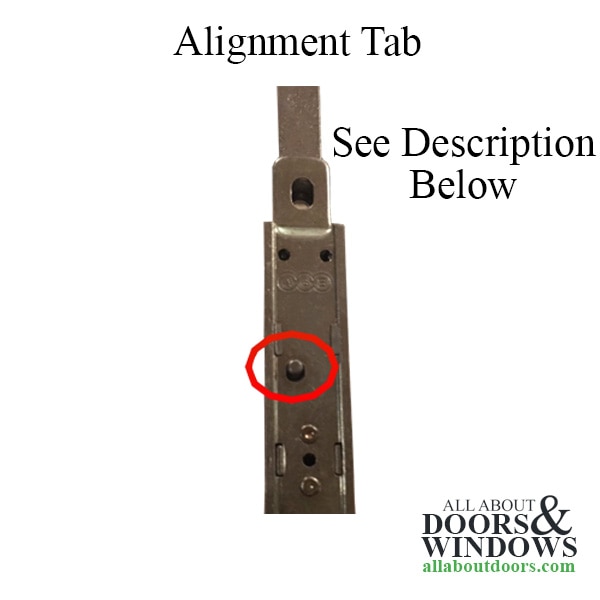

An alignment tab/button is located on the face of the lock, (red circle) AFTER hardware is installed, you need to use added pressure to move handle and the button breaks/ shears off.
This insures when the lock is installed everything is aligned correctly

VERY IMPORTANT NOTE:
When replacing drive rod part of the multipoint lock assembly this is used on, it needs to be cut to length.
It will be necessary to punch a screw hole in the bar
This is not a DIY type replacement product and is designed for new construction.

If you want to DIY, you will need a Punch Press / Cutting Tool #4908 (please contact us for information on this tool)
