Larson Torino Brass Lever Handle Set

Part Number: 305042-PB
Price: See Description

Discontinued and no longer available

New, Old Stock, (1) may have minor blemishes or scratches - Sold as is, No Returns
Larson Torino Handle set NO mortise lock, used on the Larson Tradewinds storm door.

Service Dates: 2001 - 2004
Color Finish: Only available in Polished Brass
Cylinder Type: American Version

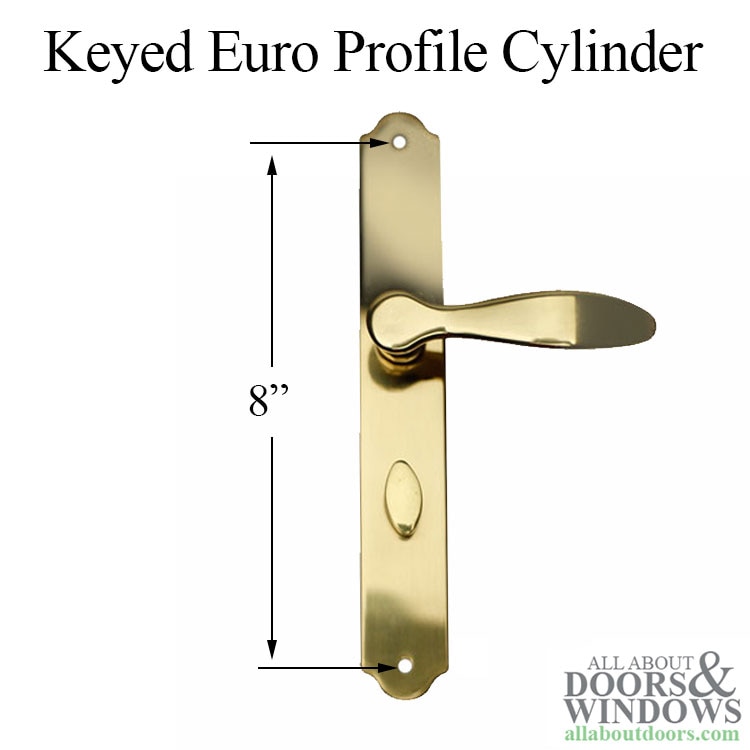

Backplates: 1-1/4 x 9 inches
Screw Holes: 8 inch
Flat Tail Pieces Extends 1 inch

Includes:
Keyed Handle set Trim with Torino Straight Levers
Screw pack, spindle and other accessories needed for installation

INSTALLATION NOTE:
The back of the key cylinder has a FLAT metal tail piece that will rotate 180 degrees.
If the thumb turn works on the inside, but the key does not work on the outside the flat tail piece is 180 degrees out of rotation.
Remove handle set and rotate the tail piece 180 degrees and then reinstall handles.
