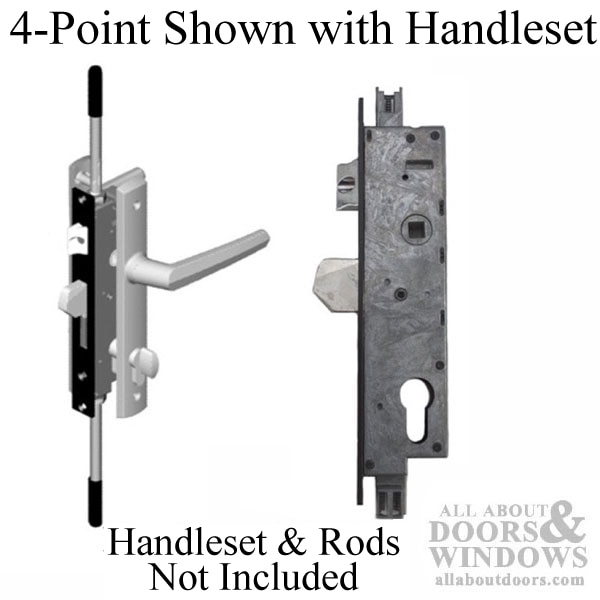

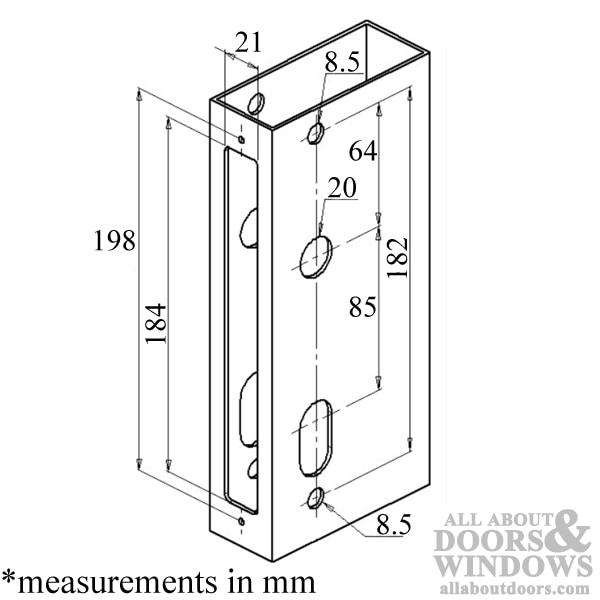

Interlock Lever Compression 4-Point Lock, 30/85, 1" Deadbolt Throw, 1" Rod Throw

Part Number: DL01-6007
Price: $149.60
Interlock Lever Compression Swing bolt lock with handle-activated shoot bolt system for security and high weather performance. It offers multiple latch and shoot bolt options from the same lock case, high corrosion resistance, and features three backset options.

Lock Type: Lever Compression mortise Lock case
Backset: 1-3/16” (30mm)

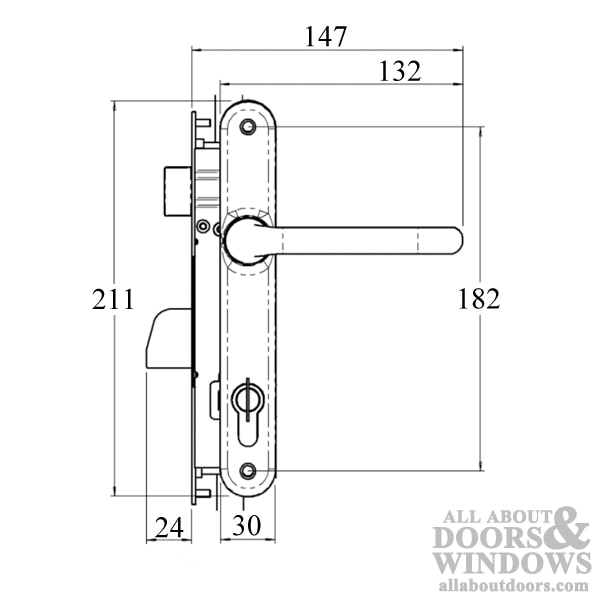

Handle to Cylinder PZ: 3-5/16 inch (85mm) 3.346
Deadbolt Throw: 15/16” (24mm)
Rod throw: 1" (25.4mm)

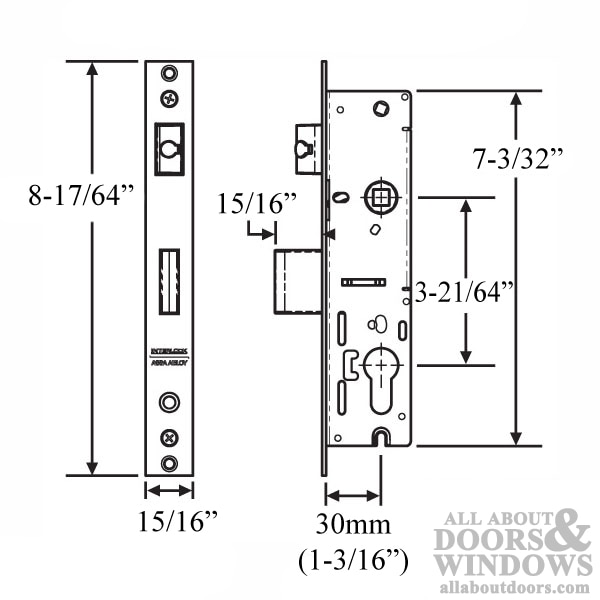

Faceplate Width: 15/16 inch (24mm)
Faceplate Length: 8-1/4 inch (210mm)
Spindle Hub: 5/16 inch (8mm)
Markings: Interlock Group, made in New Zealand

Application: Aluminum and PVC doors
Available Backsets: 30 mm (1.2”), 35 mm (1.4") and 40 mm (1.6”)
Deadbolt Length: 13 mm (1/2”), 16 mm (5/8”) and 24 mm (15/16”)
Rod Throw: 5/8 (16mm) or 1 inch (25.4mm)
Thread, Rod Diameter
Markings: Interlock Group, New Zealand

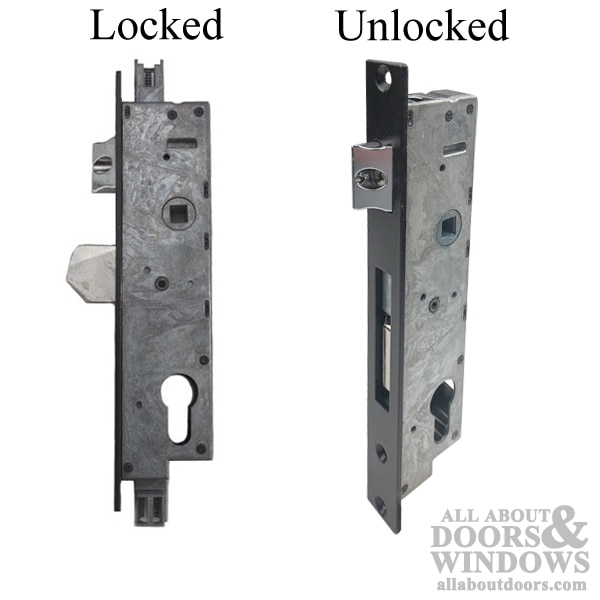

Operation: Lift handle and deadbolt swings up with shootbolts extending 1 inch, the spring latch also becomes a locking point.

To Change Handing: Remove screw in latch, rotate latch, reinstall screw

To Remove Lock with Shootbolt Rods: Remove the guides at top and bottom of door, Unscrew rods, then remove lock case.
