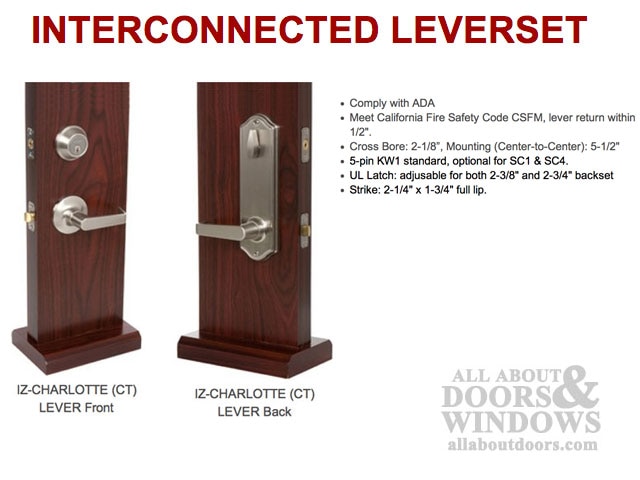

Interconnected Lock, 5-1/2 Centers, Grade 2 Keyed Lever, Left Hand - Satin Nickel
Emergency Exit Lock, Interconnected Lock and Deadbolt with 5-1/2 inch Centers
This type of lock is normally required in commercial applications when the Fire Marshall wants an emergency exit
Lock Type: Interconnected; Lever retracts deadbolt from inside for emergency exit
Retract Latch and Deadbolt from inside when handle is pushed down to exit.
lever Handle design: Charlotte (CT) Complies with ADA, optional San Diego (SD) Lever
Meet California Fire Safety Code CSFM, lever return within 1/2 inch
Cross Bore: 2-1/8 inch, Mounting (Center-to-Center): 5-1/2 inch ( Optional 4 inch )
Keyway: 5-pin KW1 standard, optional for SC1 & SC4
UL Latch: adjustable for both 2-3/8 and 2-3/4 backset
Strike: 2-1/4 x 1-3/4 full lip.
Color / Finish: Satin Nickel US15
ADDITIONAL SPECIFICATIONS
Residential Grade 2
Lever Style: Charlotte ( ADA Approved )

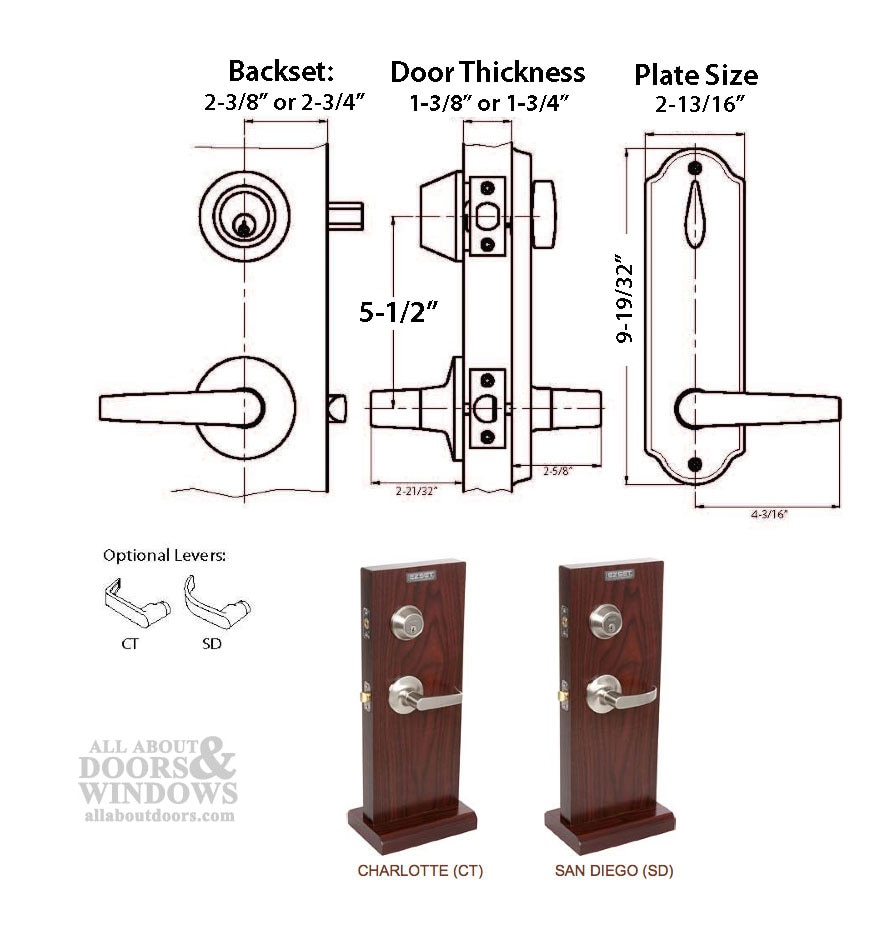

Door Prep: Cross bore: 2-1/8 inch for Both Lever and Deadbolt
Bolt Centers: 5-1/2 Inch from center of Deadbolt to Center of Lever
Backset: Adjustable Latch, Fits both 2-3/8 and 2-3/4
Door Fitting: Interior 1-3/8 inch or Exterior 1-3/4 inch door thick. 2 inch thick optional.
Exposed Trim: Zinc or Stainless steel. Lever is zinc alloy.
Keys: Key as requested (KA, KD, MCK, MK, GMK)
Key Cylinder: Kwikset KW1 standard, Schlage SC1 optional.
Latch: UL Latch standard for both deadbolt and handle.
Upper deadbolt: 2-3/8" and 2-3/4" adjustable (9092UL). Bolt: 1" throw with hardened steel rod insert. Faceplate: 1" x 2-1/4" round corner.
Lower Lever handle: 2-3/8" and 2-3/4" adjustable (9079UL). Bolt: 1/2" throw. Faceplate: 1" x 2-1/4" round corner
Strike: Deadbolt: Full lip 1-3/4 x 2-1/4 round corner (9117). Handle: Full lip 1-3/4 x 2-1/4 round corner (9103).
Door Handing: Universal, non-handing
Function: ANSI F95 Entrance Single Locking
Finish: Satin Nickel, US15 Standard
Other finishes available with minimum order quantity and longer delivery lead-time.
Lever Style: SAN DIEGO (SD), CHARLOTTE (CT) Standard
Other lever style available with minimum order quantity and longer delivery lead-time.
Priced and sold each.
For right handed version, see 380506.
