Integrity Active 45/92 Multipoint Lock, CN 6-5, Shootbolt - Stainless Steel

Integrity by Marvin Multipoint lock for Active Inswing (IIFD) and Outswing (IOFD)  hinged doors

This lock is not intended to replace the old style 2004-2007 G-U



Service Years: 2007-Present

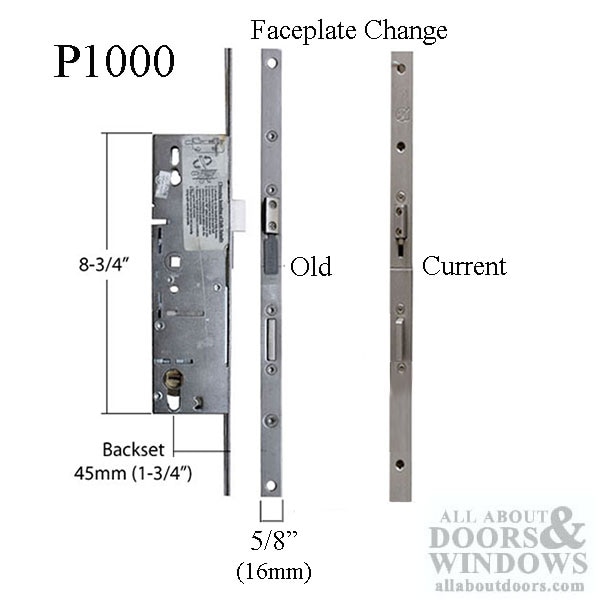

Faceplate Width: 5/8 inch (16mm)

Backset: 1-3/4 inch (45mm)

Handle Height: Special Size 34-15/16 inches

Door Panel Size:  CN 6-5, 76-23/32 inches (1949mm)

Priced and sold as each, Multipoint lock only, does not include trim.



Available Door Heights: Active Doors, Shootbolt Version

11896701  CN 6-5, 76-23/32 (1949mm)

11896702  CN 6-8, 79-7/32 (2012mm)

11895700  CN 7-0, 83-7/32 (2114mm)

11896703  CN 8-0, 92-23/32 (2355mm)



Available Door Heights: Inactive / Passive Doors

11896704  CN 6-5

11896705  CN 6-8

11894700  CN 7-0

11896706  CN 8-0



Related Integrity Hardware:

* P1000-45 - Active Gearbox,  Replacement lock case only. (Reuse the upper and lower assembly.)

* 4990632-KIT - 16mm P1000 Active 45/92 Shootbolt Assembly, Adjustable Handle Height (HH) - Special Sizes

Rehanding a Marvin Integrity Multipoint Lock
